ENSG00000061676:-:2:182934751:182942163

1. Sequences

id gene transcript strand chrom startGR endGR length seq type
ENSG00000061676:-:2:182934751:182942163 ENSG00000061676 ENST00000361354 - 2 182934752 182942163 258 AAACUUGUGGUGGAGAAUGUUGAUGUGUUAACACAAAUGAGGACCAGCUUUGACAAACCAGACCAGAUGGCUGCACUGUUUAAAAGAUUAUCAUCUGUUGACAGUGUCUUGAAGAGGAUGACAAUAAUUGGUGUAAUUUUAUCCUUCCGAUCAUUGGCACAAGAAGCACUUAGAGAUGUCUUAUCCUACCACAUUCCUUUUCUUGUAAGUUCAAUUGAAGAUUUUAAGGAUCACAUUCCAAGGGAAACUGAUAUGAAGAAACUUGUGGUGGAGAAUGUUGAUGUGUUAACACAAAUGAGGACCAGCUU circ
ENSG00000061676:-:2:182934751:182942163 ENSG00000061676 ENST00000361354 - 2 182934752 182942163 22 CUGAUAUGAAGAAACUUGUGGU bsj
ENSG00000061676:-:2:182934751:182942163 ENSG00000061676 ENST00000361354 - 2 182942154 182942363 210 AAACUGAAGGGAAACACUAAGCUUAUAUAAAUAAUUUUCAGAUGCUUUUAUUGAAACAACAAAAAAAUAUAUGUAGCAUAGAGCGUCUGGAUUUCAUGAAUUGUGUUUCCUACUUGCCAGAUUGUAAUUUCCAAGCAUGCUCUUAUCUCAUUAACACAAAGAGGUCUGUGCCUGACCUAGGAUCUUUCUUUUUUUUUUAGAAACUUGUGG ie_up
ENSG00000061676:-:2:182934751:182942163 ENSG00000061676 ENST00000361354 - 2 182934552 182934761 210 UGAUAUGAAGGUAAUAAUAUAAUUUAUAGUUGGGGUUUACAGUCUCUAAAGCGAAAUAUUUAAAUUACAUAUGCAAGAAAAUGUAAUAAAUCCUAAACUACUGUAAGGUUUCUAGUUUAGAGUGGUUAGUUAGCAUGCUUGCCUUUGUAAUUGAAUCUUUGAGAGCUCAGCACCAAAAUACUACCUAGGCAUUUUGAAAGUCAGUCUUCU ie_down
  • Note:
    • id: unique identifier.
    • gene: represents the gene from which the circRNA arises.
    • transcript: transcript whose exon coordinates overlap with the detected back-spliced junction coordinate and used in the downstream analysis.
    • strand: is the strand from which the gene is transcribed.
    • chrom: is the chromosome from which the circRNA is derived.
    • startGR: is the 5’ coordinate of the genomic range from which the sequence are extracted.
    • endGR: is the 3’ coordinate of the genomic range from which the sequence are extracted.
    • length: length of the extracted sequences.
    • seq: sequence used in the downstream analysis.
    • type: type of sequences retrieved. If type = “circ” the sequences derive from the internal circRNA sequences. If type = “bsj” the sequences derive from the back spliced junctions (BSJ). If type = “ie_up” the Intron or Exon sequences derive from the up-stream of BSJ up to 210 bp. If type = “ie_down” the Intron or Exon sequences derive from the down-stream of BSJ up to 210 bp.

2. RNA Binding Proteins Analysis

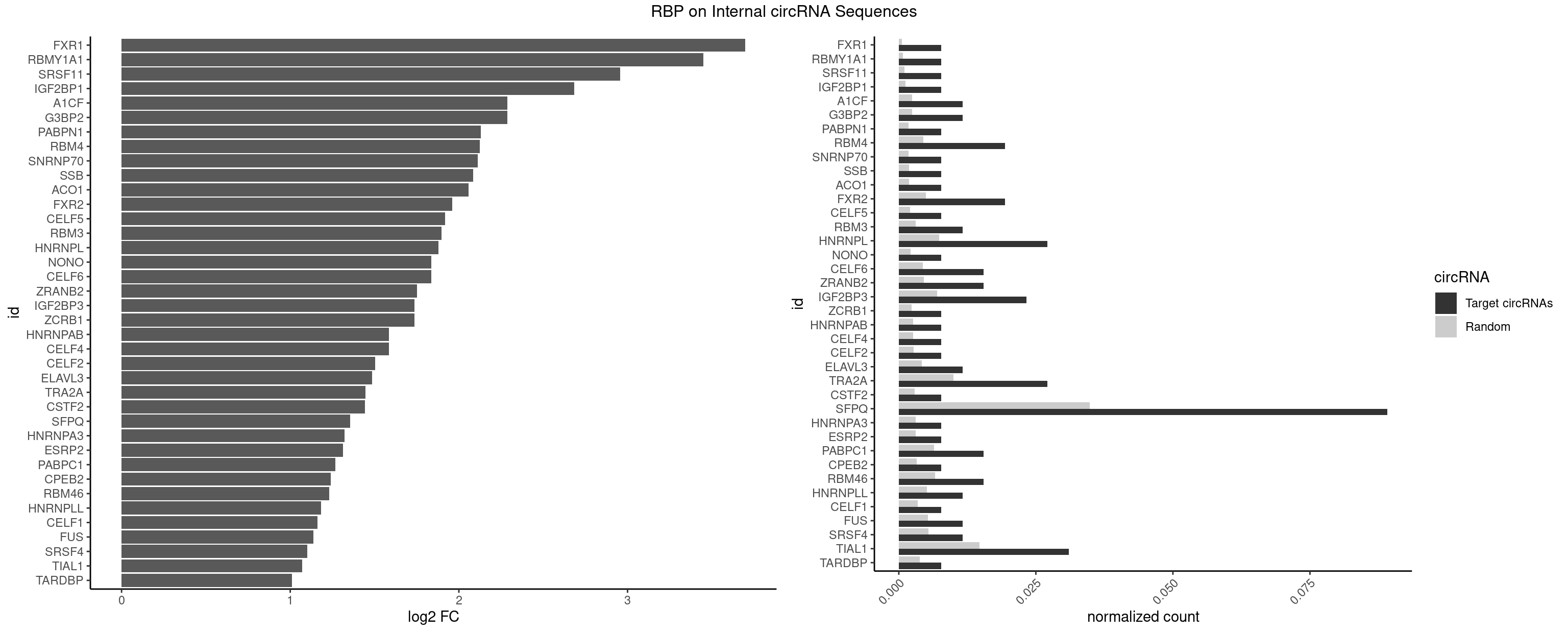

RBP on full sequence

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
FXR1 1 411 0.007751938 0.0005970720 3.698580 AUGACA ACGACA,ACGACG,AUGACA,AUGACG
RBMY1A1 1 489 0.007751938 0.0007101099 3.448443 ACAAGA ACAAGA,CAAGAC
SRSF11 1 688 0.007751938 0.0009985015 2.956720 AAGAAG AAGAAG
IGF2BP1 1 831 0.007751938 0.0012057377 2.684641 AAGCAC AAGCAC,ACCCGU,AGCACC,CACCCG,CCCGUU,GCACCC
A1CF 2 1642 0.011627907 0.0023810421 2.287926 AUAAUU,UAAUUG AGUAUA,AUAAUU,AUCAGU,CAGUAU,GAUCAG,UAAUUA,UAAUUG,UCAGUA,UGAUCA,UUAAUU
G3BP2 2 1644 0.011627907 0.0023839405 2.286171 AGGAUG,GGAUGA AGGAUA,AGGAUG,AGGAUU,GGAUAA,GGAUAG,GGAUGA,GGAUGG,GGAUUA,GGAUUG
PABPN1 1 1222 0.007751938 0.0017723764 2.128872 AAAAGA AAAAGA,AGAAGA
RBM4 4 3065 0.019379845 0.0044432593 2.124867 CCUUCC,UCCUUC,UUCCUU,UUCUUG CCUCUU,CCUUCC,CCUUCU,CGCGCG,CGCGGG,CGCGGU,CUCUUU,CUUCCU,CUUCUU,GCGCGA,GCGCGC,GCGCGG,UCCUUC,UUCCUU,UUCUUG
SNRNP70 1 1237 0.007751938 0.0017941145 2.111285 GUUCAA AAUCAA,AUCAAG,AUUCAA,GAUCAA,GUUCAA,UUCAAG
SSB 1 1260 0.007751938 0.0018274462 2.084728 CUGUUU CUGUUU,GCUGUU,UGCUGU,UGUUUU
ACO1 1 1283 0.007751938 0.0018607779 2.058651 CAGUGU CAGUGA,CAGUGC,CAGUGG,CAGUGU
FXR2 4 3434 0.019379845 0.0049780156 1.960914 GACAAA,UGACAA,UGACAG AGACAA,AGACAG,AGACGA,AGACGG,GACAAA,GACAAG,GACAGA,GACAGG,GACGAA,GACGAG,GACGGA,GACGGG,GGACAA,GGACAG,GGACGA,GGACGG,UGACAA,UGACAG,UGACGA,UGACGG
CELF5 1 1415 0.007751938 0.0020520728 1.917475 UGUGUU GUGUGG,GUGUGU,GUGUUG,GUGUUU,UGUGUG,UGUGUU
RBM3 2 2152 0.011627907 0.0031201361 1.897911 GAAACU AAAACG,AAAACU,AAACGA,AAACUA,AAGACG,AAGACU,AAUACG,AAUACU,AGACGA,AGACUA,AUACGA,AUACUA,GAAACG,GAAACU,GAGACG,GAGACU,GAUACG,GAUACU
HNRNPL 6 5085 0.027131783 0.0073706513 1.880120 AACACA,ACACAA,ACCACA,CACAAA,CACAAG AAACAA,AAACAC,AAAUAA,AAAUAC,AACAAA,AACACA,AAUAAA,AAUACA,ACACAA,ACACAC,ACACCA,ACACGA,ACAUAA,ACAUAC,ACCACA,CACAAA,CACAAC,CACAAG,CACACA,CACACC,CACCAC,CACGAA,CACGAC,CACGAG,CAUAAA,CAUACA
CELF6 3 2997 0.015503876 0.0043447134 1.835296 GUGGUG,UGUGGU,UGUGUU GUGAGG,GUGAUG,GUGGGG,GUGGUG,GUGUGG,GUGUUG,UGUGAG,UGUGAU,UGUGGG,UGUGGU,UGUGUG,UGUGUU
NONO 1 1498 0.007751938 0.0021723567 1.835296 AGAGGA AGAGGA,AGGAAC,GAGAGG,GAGGAA
ZRANB2 3 3173 0.015503876 0.0045997733 1.752994 AGGGAA,GUGGUG,UGGUGG AAAGGU,AGGGAA,AGGUAA,AGGUAC,AGGUAG,AGGUAU,AGGUCU,AGGUUA,AGGUUU,CGGUAA,CGGUAG,CGGUAU,CGGUCU,GAGGUU,GGGUAA,GGGUGA,GGUAAA,GGUGGU,GUAAAG,GUGGUG,UAAAGG,UGGUAA,UGGUGG
IGF2BP3 5 4815 0.023255814 0.0069793662 1.736423 AACACA,ACAAAC,ACAUUC AAAAAC,AAAACA,AAAAUC,AAACAC,AAACUC,AAAUAC,AAAUCA,AAAUUC,AACACA,AACUCA,AAUACA,AAUUCA,ACAAAC,ACAAUC,ACACAC,ACACUC,ACAUAC,ACAUUC,CAAACA,CAAUCA,CACACA,CACUCA,CAUACA,CAUUCA
ZCRB1 1 1605 0.007751938 0.0023274215 1.735824 GUUUAA AAUUAA,ACUUAA,AUUUAA,GAAUUA,GACUUA,GAUUAA,GAUUUA,GCUUAA,GGAUUA,GGCUUA,GGUUUA,GUUUAA
CELF4 1 1782 0.007751938 0.0025839306 1.584990 UGUGUU GGUGUG,GGUGUU,GUGUGG,GUGUGU,GUGUUG,GUGUUU,UGUGUG,UGUGUU
HNRNPAB 1 1782 0.007751938 0.0025839306 1.584990 GACAAA AAAGAC,AAGACA,ACAAAG,AGACAA,AUAGCA,CAAAGA,GACAAA
CELF2 1 1886 0.007751938 0.0027346479 1.503202 AUGUGU AUGUGU,GUAUGU,GUCUGU,GUGUGU,GUUGUU,UAUGUG,UAUGUU,UGUGUG,UGUUGU,UUGUGU
ELAVL3 2 2867 0.011627907 0.0041563169 1.484214 AUUUUA AUUUAU,AUUUUA,UAUUUA,UAUUUU,UUAUUU,UUUAUU,UUUUUU
TRA2A 6 6871 0.027131783 0.0099589296 1.445921 AAGAAA,AAGAAG,AAGAGG,AGAGGA,GAAGAA,GAAGAG AAAGAA,AAGAAA,AAGAAG,AAGAGG,AGAAAG,AGAAGA,AGAGGA,AGGAAG,GAAAGA,GAAGAA,GAAGAG,GAGGAA
CSTF2 1 1967 0.007751938 0.0028520334 1.442566 UGUGUU GUGUGU,GUGUUG,GUGUUU,GUUUUG,UGUGUG,UGUGUU,UGUUUG,UGUUUU
SFPQ 22 24050 0.089147287 0.0348548043 1.354833 AAGAGG,AAGGGA,AGAGGA,AGGACC,GAAGAA,GAAGAG,GAAGCA,GAGGAC,GUAAUU,GUGGUG,UAAGGA,UAAUUG,UAAUUU,UAGAGA,UGAUGU,UGGAGA,UGGUGG,UGGUGU,UUGAAG,UUGAUG,UUGGUG AAGAAC,AAGAGC,AAGAGG,AAGCAA,AAGGAA,AAGGAC,AAGGGA,ACUGGG,AGAGAG,AGAGGA,AGAGGU,AGAUCG,AGGAAC,AGGACC,AGGGAU,AGGGGG,AUCGGA,CAGGCA,CUAAGG,CUGGAG,CUGGGA,GAAGAA,GAAGAG,GAAGCA,GAAGGA,GACUGG,GAGAGG,GAGGAA,GAGGAC,GAGGUA,GAUCGG,GCAGGC,GGAAGA,GGACUG,GGAGAG,GGAGGA,GGAGGG,GGGAUC,GGGGAC,GGGGAU,GGGGGA,GGGGGG,GGUAAG,GGUCUG,GUAAGA,GUAAUG,GUAAUU,GUAGUG,GUAGUU,GUCUGG,GUGAUG,GUGAUU,GUGGUG,GUGGUU,UAAGAG,UAAGGA,UAAGGG,UAAUGG,UAAUGU,UAAUUG,UAAUUU,UAGAGA,UAGAUC,UAGGGG,UAGUGG,UAGUGU,UAGUUG,UAGUUU,UCGGAA,UCUAAG,UCUGGA,UGAAGC,UGAUGG,UGAUGU,UGAUUG,UGAUUU,UGCAGG,UGGAAG,UGGAGA,UGGAGC,UGGAGG,UGGUCU,UGGUGG,UGGUGU,UGGUUG,UGGUUU,UUAAUG,UUAAUU,UUAGUG,UUAGUU,UUGAAG,UUGAUG,UUGAUU,UUGGUG,UUGGUU,UUUUUU
HNRNPA3 1 2140 0.007751938 0.0031027457 1.321012 CCAAGG AAGGAG,AGGAGC,CAAGGA,CCAAGG,GCCAAG,GGAGCC
ESRP2 1 2150 0.007751938 0.0031172377 1.314289 GGGAAA GGGAAA,GGGAAG,GGGAAU,GGGGAA,GGGGAG,GGGGAU,UGGGAA,UGGGGA
PABPC1 3 4443 0.015503876 0.0064402624 1.267438 ACAAAC,ACAAAU,CAAACC AAAAAA,AAAAAC,ACAAAC,ACAAAU,ACGAAC,ACGAAU,ACUAAC,ACUAAU,AGAAAA,CAAACA,CAAACC,CAAAUA,CAAAUC,CGAACA,CGAACC,CGAAUA,CGAAUC,CUAACA,CUAACC,CUAAUA,CUAAUC,GAAAAA,GAAAAC
CPEB2 1 2261 0.007751938 0.0032780993 1.241697 CCUUUU AUUUUU,CAUUUU,CCUUUU,CUUUUU,UUUUUU
RBM46 3 4554 0.015503876 0.0066011240 1.231845 AUCAUU,AUGAAG,GAUCAU AAUCAA,AAUCAU,AAUGAA,AAUGAU,AUCAAA,AUCAAG,AUCAAU,AUCAUA,AUCAUG,AUCAUU,AUGAAA,AUGAAG,AUGAAU,AUGAUA,AUGAUG,AUGAUU,GAUCAA,GAUCAU,GAUGAA,GAUGAU
HNRNPLL 2 3534 0.011627907 0.0051229360 1.182549 ACAAAC,ACCACA ACAAAC,ACACAC,ACACCA,ACAUAC,ACCACA,ACCGCA,ACGACA,ACUGCA,AGACGA,CAAACA,CACACA,CACACC,CACCAC,CACCGC,CACUGC,CAGACG,CAUACA,GACGAC,GCAAAC,GCACAC,GCAUAC
CELF1 1 2391 0.007751938 0.0034664959 1.161079 UGUGUU CUGUCU,GUGUGU,GUGUUG,GUUGUG,GUUUGU,UGUCUG,UGUGUG,UGUGUU,UGUUGU,UGUUUG,UUGUGU
FUS 2 3648 0.011627907 0.0052881452 1.136758 UGGUGG,UGGUGU AAAAAA,CGGUGA,CGGUGG,GGGGGG,GGGUGA,GGGUGC,GGGUGG,GGGUGU,UGGUGA,UGGUGG,UGGUGU,UUUUUU
SRSF4 2 3740 0.011627907 0.0054214720 1.100835 AAGAAG,GAAGAA AAGAAG,AGAAGA,AGGAAG,GAAGAA,GAGGAA,GGAAGA
TIAL1 7 10182 0.031007752 0.0147572438 1.071206 AAUUUU,AUUUUA,CUUUUC,UUUAAA,UUUUAA,UUUUAU AAAUUU,AAUUUU,AGUUUU,AUUUUA,AUUUUC,AUUUUG,AUUUUU,CAGUUU,CUUUUA,CUUUUC,CUUUUG,CUUUUU,GUUUUC,GUUUUU,UAAAUU,UAUUUU,UCAGUU,UUAAAU,UUAUUU,UUCAGU,UUUAAA,UUUAUU,UUUCAG,UUUUAA,UUUUAU,UUUUCA,UUUUUA,UUUUUC,UUUUUG,UUUUUU
TARDBP 1 2654 0.007751938 0.0038476365 1.010585 GAAUGU GAAUGA,GAAUGG,GAAUGU,GUGAAU,GUGUGU,GUUGUG,GUUGUU,GUUUUG,UGAAUG,UGUGUG,UUGUGC,UUGUUC,UUUUGC

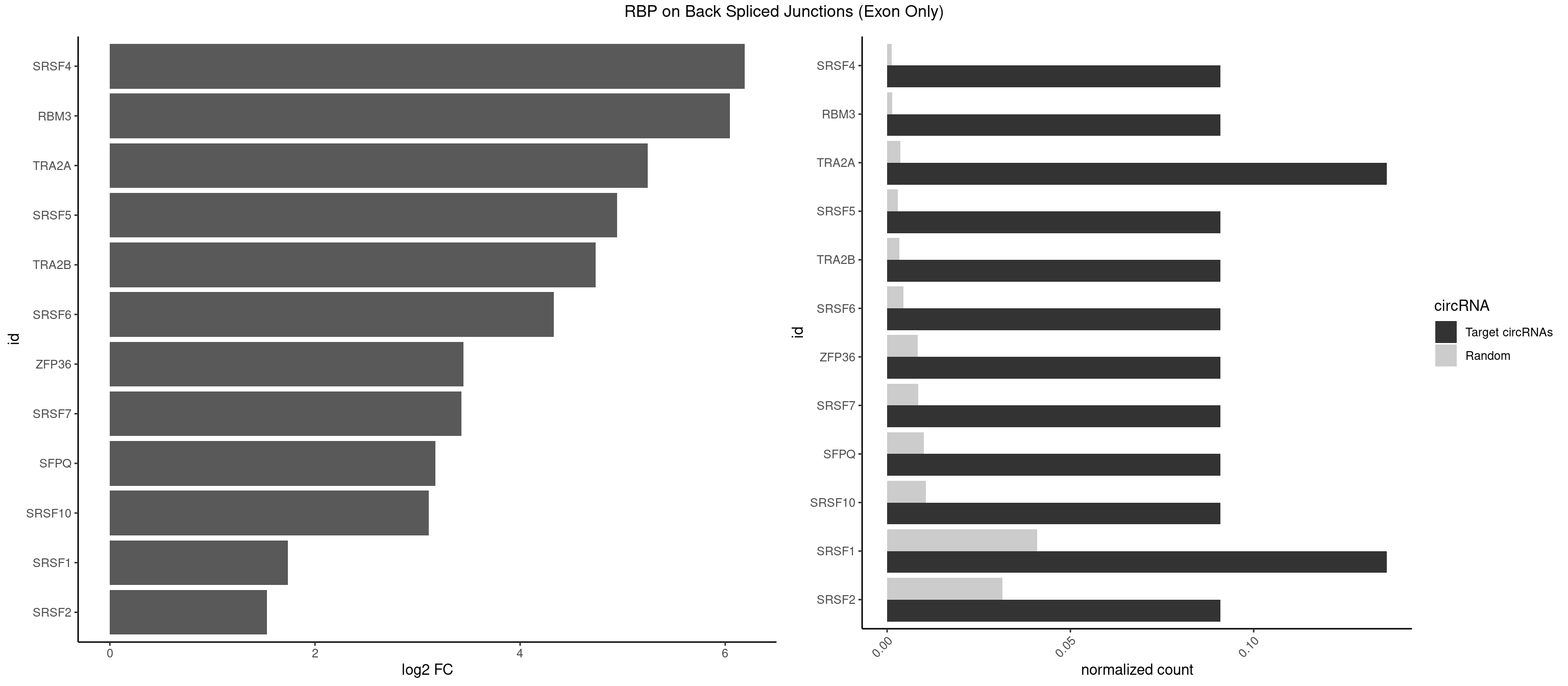

RBP on BSJ (Exon Only)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
SRSF4 1 18 0.09090909 0.001244433 6.190864 GAAGAA AGAAGA,AGGAAG,GAAGAA,GAGGAA,GGAAGA
RBM3 1 20 0.09090909 0.001375426 6.046474 GAAACU AAAACG,AAAACU,AAGACU,AAUACG,AAUACU,AUACUA,GAAACU,GAGACG,GAGACU,GAUACU
TRA2A 2 54 0.13636364 0.003602305 5.242395 AAGAAA,GAAGAA AAAGAA,AAGAAA,AAGAGG,AGAAAG,AGAAGA,AGAGGA,AGGAAG,GAAAGA,GAAGAA,GAAGAG,GAGGAA
SRSF5 1 44 0.09090909 0.002947341 4.946939 GAAGAA AACAGC,AGAAGA,AGGAAG,AUAAAG,CAACAG,CACAGA,CACAGC,CACAUC,CACGGA,CGCAGC,GAAGAA,GAGGAA,GGAAGA,UAAAGG,UACAGA,UACAGC,UACGUA,UGCAGA,UGCAGC,UGCGGC
TRA2B 1 51 0.09090909 0.003405816 4.738352 GAAGAA AAAGAA,AAGAAC,AAGAAU,AAGGAA,AAUAAG,AGAAGA,AGAAGG,AGGAAA,AGGAAG,GAAAGA,GAAGAA,GAAGGA,GGAAGG,UAAGAA
SRSF6 1 68 0.09090909 0.004519256 4.330267 GAAGAA AACCUG,ACCGUC,ACCUGG,AGAAGA,AGCGGA,AGGAAG,AUCCUG,CAACCU,CACAGG,CACCUG,CACGGA,CACUCG,CACUGG,CAGCAC,CCUGGC,CUACAG,CUCAGG,CUCUGG,CUUCUG,GAAGAA,GAGGAA,GCACCU,GCAGCA,GGAAGA,UACAGG,UACUGG,UCCUGG,UGCGGC,UGUGGA,UUACUG,UUCAGG,UUCUGG,UUUCAG
ZFP36 1 126 0.09090909 0.008318051 3.450107 AAGAAA AAAAAA,AAAAAG,AAAAAU,AAAAGA,AAAAGC,AAAAGG,AAAAGU,AAAAUA,AAAGAA,AAAGCA,AAAUAA,AACAAA,AACAAG,AAGAAA,AAGCAA,AAGGAA,AAGUAA,AAUAAG,ACAAAC,ACAAAG,ACAAGC,ACAAGG,ACAAGU,ACCUGU,AGAAAG,AGGAAA,AGUAAA,AUAAAG,AUAAAU,AUAAGC,AUUUAA,CAAAGA,CAAAUA,CAAGGA,CAAGUA,CCCUCC,CCCUGU,CCUUCU,GCAAAG,GGAAAG,GUAAAG,UAAAGA,UAAAUA,UAAGCA,UAAGGA,UCCUCU,UCCUGC,UCCUGU,UCUUCC,UCUUCU,UCUUGC,UCUUUC,UUGUGC,UUGUGG
SRSF7 1 128 0.09090909 0.008449044 3.427565 GAAGAA AAGGAC,AAGGCG,AAUGAU,ACGAAU,ACUACG,AGAAGA,AGAGAA,AGAGAC,AGAGAG,AGAGAU,AGAGGA,AGAUCA,AGAUCU,AGGAAG,AGGACA,AUAGAC,AUUGAC,AUUGAU,CAGAGA,CGAAUG,CUCUUC,CUGAGA,GAAGAA,GAAGGC,GAAUGA,GACAAA,GACGAC,GAGACU,GAGAGA,GAGAUC,GAGGAA,GAUAGA,GAUUGA,GGAAGG,GGACAA,GGACGA,UAGAGA,UCUUCA,UGAGAG,UGGACA
SFPQ 1 153 0.09090909 0.010086455 3.172005 GAAGAA AAGAAC,AAGAGC,AAGAGG,AAGCAA,AAGGAA,AAGGAC,AAGGGA,ACUGGG,AGAGAG,AGAGGA,AGAGGU,AGGAAC,AGGACC,AGGGAU,AGGGGG,AUCGGA,CAGGCA,CUGGAG,CUGGGA,GAAGAA,GAAGAG,GAAGCA,GAAGGA,GAGGAA,GAGGAC,GAGGUA,GCAGGC,GGAAGA,GGAGAG,GGAGGA,GGAGGG,GGGGGA,GUAAGA,GUAAUG,GUAGUG,GUAGUU,GUCUGG,GUGAUU,UAAGAG,UAAGGA,UAAGGG,UAAUGG,UAAUUG,UAGAGA,UAGAUC,UAGUGG,UAGUGU,UAGUUG,UCGGAA,UCUAAG,UGAAGC,UGAUGG,UGAUGU,UGAUUG,UGCAGG,UGGAGA,UGGAGC,UGGAGG,UGGUUU,UUAAUG,UUAGUG,UUAGUU,UUGAAG,UUGGUU
SRSF10 1 160 0.09090909 0.010544931 3.107875 AAGAAA AAAAGA,AAAGAA,AAAGAC,AAAGAG,AAAGGG,AAGAAA,AAGACA,AAGAGA,AAGAGG,AAGGAA,AAGGGA,AAGGGG,ACAAAG,AGACAA,AGAGAA,AGAGAC,AGAGAG,AGAGGA,AGAGGG,CAAAGA,GAAAGA,GACAAA,GAGAAA,GAGAAC,GAGAAG,GAGACA,GAGACC,GAGACG,GAGAGA,GAGAGC,GAGGAA,GAGGAG,GAGGGA,GAGGGG
SRSF1 2 625 0.13636364 0.041000786 1.733736 GAAGAA,UGAAGA AAAAGA,AAAGAA,AAAGAC,AAAGAG,AACAGC,AAGAAC,AAGACC,AAGAGA,AAGAGC,AAGAGG,AAGGAC,AAGGCG,AAGGUG,AAUGAC,AAUUUC,ACAAGG,ACAGAG,ACAGCA,ACAGCG,ACAGGA,ACAGGG,ACAGGU,ACAGUG,ACCCGA,ACCGGA,ACGAAU,ACGGAA,ACUGAG,ACUGGA,AGAAGA,AGAAGG,AGACAA,AGACAG,AGACGU,AGAGAA,AGAGAC,AGAGCA,AGAGGA,AGAGGG,AGAGGU,AGAUGG,AGCAGG,AGCCGA,AGCGGA,AGGAAA,AGGAAC,AGGAAG,AGGACA,AGGACC,AGGACG,AGGACU,AGGAGA,AGGAGC,AGGAGG,AGGUAA,AUGAAC,AUGAAG,AUGACA,AUGACU,AUGGAC,AUGGAG,CAAGGA,CAAUGG,CACAGA,CACAGC,CACAGG,CACAGU,CACCCA,CACCCG,CACCGG,CACGCA,CACGGA,CACUGG,CAGAAC,CAGACA,CAGACG,CAGAGA,CAGAGC,CAGAGG,CAGCCG,CAGUCG,CAUGGU,CCAACC,CCAAGG,CCACCA,CCACCC,CCACGG,CCAGCA,CCAGCC,CCAGCG,CCAGGA,CCAGGG,CCCACC,CCCAGC,CCCAGG,CCCCGC,CCCGGG,CCCGUU,CCCUCC,CCCUCG,CCGAGG,CCGCGA,CCGCUA,CCGGAC,CCGGAG,CCGGGA,CCGUCC,CCGUGC,CCGUGG,CCGUUU,CCUAGG,CCUCCG,CCUCGA,CCUGCG,CCUGGA,CCUGGG,CGAACG,CGAAGC,CGAGGA,CGAGGC,CGAGGG,CGAUGG,CGCAGC,CGCCGC,CGCUAU,CGCUGC,CGGAAU,CGGACA,CGGAGC,CGGAGG,CGGCGG,CGGGCA,CGGUGC,CGGUGG,CGUGCG,CGUGGA,CGUGGG,CUCAGG,CUCGUG,CUGAAC,CUGAGU,GAAAGA,GAAAGG,GAACAG,GAAGAA,GAAGAG,GAAGAU,GAAGCA,GAAGCC,GAAGCU,GAAGGA,GAAGGC,GAAGGU,GAAUGA,GACAGA,GACAGG,GACCCA,GACGAA,GACGAC,GACGGA,GACUGA,GAGAAC,GAGAAG,GAGACA,GAGACG,GAGCAG,GAGGAA,GAGGAC,GAGGAG,GAGGAU,GAGGCA,GAGGGA,GAGGGC,GAGGGG,GAGGUA,GAUGAA,GAUGAC,GAUGAU,GAUGCA,GAUGCC,GAUGCU,GAUGGA,GAUGGC,GCACGG,GCAGCA,GCAGCG,GCAGGA,GCAGGC,GCAGGG,GCAGGU,GCCCAC,GCCCGG,GCCCGU,GCGCAA,GCGCCA,GCGCCC,GCGCGG,GCGGAC,GCGGCG,GCGGUU,GCUGGG,GGAAAG,GGAACA,GGAAGA,GGAAGG,GGAAUG,GGACAA,GGACAG,GGACCA,GGACCG,GGACGA,GGAGAA,GGAGAC,GGAGAU,GGAGCA,GGAGCG,GGAGCU,GGAGGA,GGAGGC,GGAGGG,GGAGGU,GGAUAU,GGAUGA,GGAUUC,GGCACA,GGCAGA,GGCCGA,GGCGCA,GGGACG,GGGCCG,GGGGAA,GGGGAG,GGGGCA,GGGGCG,GGGGGA,GGGUAC,GGUCCA,GGUCCG,GGUGAA,GGUGCA,GGUGCC,GGUGCG,GGUGCU,GGUGGA,GGUGGC,GGUGGG,GGUGGU,GUAGGA,GUGACA,UAGACA,UAGGAC,UCAAGA,UCAGGU,UCGGGC,UGAACA,UGAAGA,UGAAGC,UGAAGG,UGACAG,UGACGA,UGACUG,UGAGUU,UGAUGA,UGAUGG,UGGACA,UGGAGA,UGGAGC,UGGAGG,UGGUGC,UGUAGG,UUCAAG
SRSF2 1 479 0.09090909 0.031438302 1.531901 GAAGAA AAAAGA,AAAGAG,AAGAGA,AAGCAG,AAGCUG,AAGGCG,AAUACC,AAUGCU,ACCACC,ACCACU,ACCAGC,ACCAGU,ACCCCC,ACCCCU,ACUCAA,AGAAGA,AGAAGC,AGAAUA,AGAAUG,AGAGAA,AGAGAU,AGAGGA,AGAGGU,AGAGUA,AGAGUG,AGAGUU,AGAUAA,AGAUCC,AGAUGC,AGCACU,AGCAGA,AGCAGU,AGCCGA,AGCCUC,AGCGGA,AGCUGU,AGGAAG,AGGAGA,AGGAGC,AGGAGG,AGGAGU,AGGCAG,AGGCGU,AGGCUG,AGGGUA,AGUAGG,AGUAGU,AGUGAC,AGUGUU,AUGAUG,AUGCUG,AUGGAG,AUUAGU,AUUCCU,AUUGAU,CAGAGA,CAGAGG,CAGAGU,CAGUAG,CAGUGG,CCACCA,CCAGAU,CCAGCC,CCAGCU,CCAGGG,CCAGGU,CCAGUC,CCAGUG,CCAGUU,CCCGCU,CCCGUG,CCGCUA,CCGGUG,CCUCCG,CCUGCG,CCUGCU,CCUGUU,CGAACG,CGAGGA,CGAGUA,CGAGUG,CGAGUU,CGCAGU,CGCUGC,CGUAAG,CGUGCG,CUACCG,CUAGAA,CUCAAG,CUCCAA,CUCCUG,CUCGUG,CUGAUG,GAAAGG,GAAGAA,GAAGCG,GAAGGC,GAAUAC,GAAUCC,GACCCC,GACGGA,GACUCA,GACUGU,GAGAAG,GAGAAU,GAGAGA,GAGAGU,GAGAUA,GAGAUG,GAGCAC,GAGCAG,GAGCUG,GAGGAA,GAGGAC,GAGGAG,GAGUGA,GAUCCC,GAUCCG,GAUGAU,GAUGCU,GAUGGA,GAUUAG,GAUUGA,GCACUG,GCAGAG,GCAGGG,GCAGGU,GCAGUA,GCAGUG,GCCACC,GCCACU,GCCCAC,GCCGAG,GCCGCC,GCCGUU,GCCUCA,GCCUCC,GCGUGU,GCUGUU,GGAACC,GGAAGG,GGAAUG,GGACCG,GGACGC,GGAGAA,GGAGAG,GGAGAU,GGAGCG,GGAGGA,GGAGUG,GGAGUU,GGAUCC,GGAUGG,GGCAGU,GGCCAC,GGCCGC,GGCCUC,GGCGUG,GGCUCC,GGCUCG,GGCUGA,GGCUGC,GGGAAU,GGGAGC,GGGCAG,GGGUAA,GGGUAC,GGGUAG,GGGUAU,GGGUGA,GGUACG,GGUAGG,GGUCAG,GGUUAC,GGUUCC,GGUUGG,GUAAGC,GUAGGC,GUCAGU,GUCGCC,GUCUAA,GUGCAG,GUUAAU,GUUCCC,GUUCCU,GUUCGA,GUUCUG,GUUGGC,GUUUCG,UAAGCU,UACGAG,UACGUG,UAGGCU,UAUGCU,UCACCG,UCAGUG,UCCAGA,UCCAGC,UCCAGG,UCCAGU,UCCUGC,UCCUGU,UCGAGU,UCGUGC,UGAGCU,UGAUCG,UGAUGG,UGCAGA,UGCAGU,UGCCGU,UGCGGU,UGCUGU,UGGAGA,UGGAGG,UGGAGU,UGGCAG,UGUUCC,UUAAUG,UUACUG,UUAGUG,UUCCAG,UUCCCG,UUCCUA,UUCCUG,UUCGAG,UUGUUG

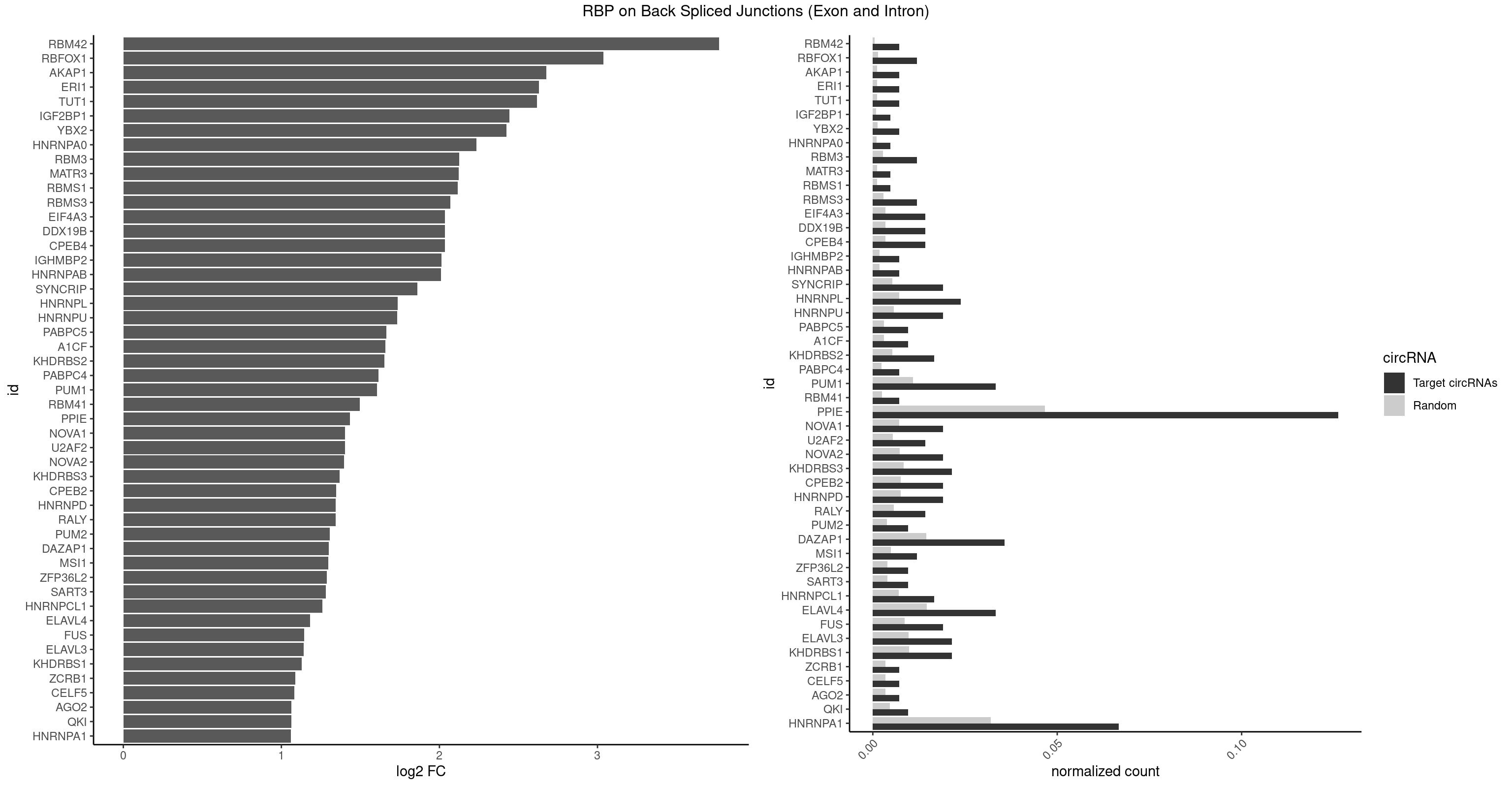

RBP on BSJ (Exon and Intron)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
RBM42 2 103 0.007142857 0.0005239823 3.768911 AACUAC,ACUAAG AACUAA,AACUAC,ACUAAG,ACUACG
RBFOX1 4 287 0.011904762 0.0014510278 3.036392 AGCAUG,GCAUGC AGCAUG,GCAUGA,GCAUGC,GCAUGU,UGACUG,UGCAUG
AKAP1 2 221 0.007142857 0.0011185006 2.674935 AUAUAU,UAUAUA AUAUAU,UAUAUA
ERI1 2 228 0.007142857 0.0011537686 2.630147 UUCAGA,UUUCAG UUCAGA,UUUCAG
TUT1 2 230 0.007142857 0.0011638452 2.617602 AAAUAC,AAUACU AAAUAC,AAUACU,AGAUAC,CAAUAC,CGAUAC,GAUACU
IGF2BP1 1 173 0.004761905 0.0008766626 2.441445 AGCACC AAGCAC,ACCCGU,AGCACC,CACCCG,CCCGUU,GCACCC
YBX2 2 263 0.007142857 0.0013301088 2.424957 AACAAC,ACAACA AACAAC,AACAUC,ACAACA,ACAACG,ACAACU,ACAUCA,ACAUCG,ACAUCU
HNRNPA0 1 200 0.004761905 0.0010126965 2.233337 AAUUUA AAUUUA,AGAUAU,AGUAGG
RBM3 4 541 0.011904762 0.0027307537 2.124168 AAACUA,AAUACU,AUACUA,GAAACU AAAACG,AAAACU,AAACGA,AAACUA,AAGACG,AAGACU,AAUACG,AAUACU,AGACGA,AGACUA,AUACGA,AUACUA,GAAACG,GAAACU,GAGACG,GAGACU,GAUACG,GAUACU
MATR3 1 216 0.004761905 0.0010933091 2.122837 AAUCUU AAUCUU,AUCUUA,AUCUUG,CAUCUU
RBMS1 1 217 0.004761905 0.0010983474 2.116204 UAUAUA AUAUAC,AUAUAG,GAUAUA,UAUAUA
RBMS3 4 562 0.011904762 0.0028365578 2.069326 AAUAUA,AUAUAU,UAUAUA AAUAUA,AUAUAG,AUAUAU,CAUAUA,CUAUAG,CUAUAU,UAUAGA,UAUAGC,UAUAUA,UAUAUC
CPEB4 5 691 0.014285714 0.0034864974 2.034723 UUUUUU UUUUUU
DDX19B 5 691 0.014285714 0.0034864974 2.034723 UUUUUU UUUUUU
EIF4A3 5 691 0.014285714 0.0034864974 2.034723 UUUUUU UUUUUU
IGHMBP2 2 350 0.007142857 0.0017684401 2.014024 AAAAAA AAAAAA
HNRNPAB 2 351 0.007142857 0.0017734784 2.009919 ACAAAG,CAAAGA AAAGAC,AAGACA,ACAAAG,AGACAA,AUAGCA,CAAAGA,GACAAA
SYNCRIP 7 1041 0.019047619 0.0052498992 1.859249 AAAAAA,UUUUUU AAAAAA,UUUUUU
HNRNPL 9 1419 0.023809524 0.0071543732 1.734641 AAACAA,AAACAC,AAAUAA,AAAUAC,AACAAA,AACACA,AAUAAA,ACACAA,CACAAA AAACAA,AAACAC,AAAUAA,AAAUAC,AACAAA,AACACA,AAUAAA,AAUACA,ACACAA,ACACAC,ACACCA,ACACGA,ACAUAA,ACAUAC,ACCACA,CACAAA,CACAAC,CACAAG,CACACA,CACACC,CACCAC,CACGAA,CACGAC,CACGAG,CAUAAA,CAUACA
HNRNPU 7 1136 0.019047619 0.0057285369 1.733372 AAAAAA,UUUUUU AAAAAA,CCCCCC,GGGGGG,UUUUUU
PABPC5 3 596 0.009523810 0.0030078597 1.662801 AGAAAA,GAAAAU,GAAAGU AGAAAA,AGAAAG,AGAAAU,GAAAAU,GAAAGU,GAAAUU
A1CF 3 598 0.009523810 0.0030179363 1.657976 AUAAUU,UAAUUG AGUAUA,AUAAUU,AUCAGU,CAGUAU,GAUCAG,UAAUUA,UAAUUG,UCAGUA,UGAUCA,UUAAUU
KHDRBS2 6 1051 0.016666667 0.0053002821 1.652825 AAUAAA,UUUUUU AAUAAA,AUAAAA,AUAAAC,GAUAAA,UUUUUU
PABPC4 2 462 0.007142857 0.0023327287 1.614483 AAAAAA AAAAAA,AAAAAG
PUM1 13 2172 0.033333333 0.0109482064 1.606271 AAUAUU,AAUUGU,AUUGUA,GAAUUG,GUAAUA,UAAAUA,UAAUAU,UACAUA,UAUAUA,UGUAAU AAUAUU,AAUGUU,AAUUGU,ACAUAA,AGAAUU,AGAUAA,AUUGUA,CAGAAU,CCAGAA,CUUGUA,GAAUUG,GUAAAU,GUAAUA,GUACAU,GUAGAU,GUAUAU,GUCCAG,UAAAUA,UAAUAU,UAAUGU,UACAUA,UACAUC,UAGAUA,UAUAUA,UGUAAA,UGUAAU,UGUACA,UGUAGA,UGUAUA,UGUCCA,UUAAUG,UUGUAC,UUGUAG,UUUAAU
RBM41 2 502 0.007142857 0.0025342604 1.494937 UACUUG,UUACAU AUACAU,AUACUU,UACAUG,UACAUU,UACUUG,UACUUU,UUACAU,UUACUU
PPIE 52 9262 0.126190476 0.0466696896 1.435045 AAAAAA,AAAAAU,AAAAUA,AAAUAA,AAAUAU,AAAUUA,AAUAAA,AAUAAU,AAUAUA,AAUAUU,AAUUUA,AAUUUU,AUAAAU,AUAAUA,AUAAUU,AUAUAA,AUAUAU,AUAUUU,AUUUAA,AUUUAU,UAAAUA,UAAAUU,UAAUAA,UAAUAU,UAAUUU,UAUAAA,UAUAAU,UAUAUA,UAUUUA,UUAAAU,UUAUAU,UUUAAA,UUUAUA,UUUAUU,UUUUAU,UUUUUA,UUUUUU AAAAAA,AAAAAU,AAAAUA,AAAAUU,AAAUAA,AAAUAU,AAAUUA,AAAUUU,AAUAAA,AAUAAU,AAUAUA,AAUAUU,AAUUAA,AAUUAU,AAUUUA,AAUUUU,AUAAAA,AUAAAU,AUAAUA,AUAAUU,AUAUAA,AUAUAU,AUAUUA,AUAUUU,AUUAAA,AUUAAU,AUUAUA,AUUAUU,AUUUAA,AUUUAU,AUUUUA,AUUUUU,UAAAAA,UAAAAU,UAAAUA,UAAAUU,UAAUAA,UAAUAU,UAAUUA,UAAUUU,UAUAAA,UAUAAU,UAUAUA,UAUAUU,UAUUAA,UAUUAU,UAUUUA,UAUUUU,UUAAAA,UUAAAU,UUAAUA,UUAAUU,UUAUAA,UUAUAU,UUAUUA,UUAUUU,UUUAAA,UUUAAU,UUUAUA,UUUAUU,UUUUAA,UUUUAU,UUUUUA,UUUUUU
NOVA1 7 1428 0.019047619 0.0071997179 1.403598 AGCACC,UCAGUC,UUUUUU AACACC,ACCACC,AGCACC,AGUCAC,AUCAAC,AUCACC,AUCAUC,AUUCAU,CAGUCA,CAUUCA,CCCCCC,GGGGGG,UCAGUC,UCAUUC,UUCAUU,UUUUUU
U2AF2 5 1071 0.014285714 0.0054010480 1.403262 UUUUUU UUUUCC,UUUUUC,UUUUUU
NOVA2 7 1434 0.019047619 0.0072299476 1.397554 AGCACC,AGGCAU,UUUUUU AACACC,ACCACC,AGACAU,AGAUCA,AGCACC,AGGCAU,AGUCAU,AUCAAC,AUCACC,AUCAUC,CCUAGA,CUAGAU,GAGACA,GAGGCA,GAGUCA,GAUCAC,GGGGGG,UAGAUC,UUUUUU
KHDRBS3 8 1646 0.021428571 0.0082980653 1.368689 AAAUAA,AAUAAA,UAAAUA,UUUUUU AAAUAA,AAUAAA,AGAUAA,AUAAAA,AUAAAC,AUAAAG,AUUAAA,GAUAAA,UAAAAC,UAAAUA,UUAAAC,UUUUUU
CPEB2 7 1487 0.019047619 0.0074969770 1.345230 CAUUUU,CUUUUU,UUUUUU AUUUUU,CAUUUU,CCUUUU,CUUUUU,UUUUUU
HNRNPD 7 1488 0.019047619 0.0075020153 1.344261 AAAAAA,AAUUUA,AUUUAU,UAUUUA,UUAGAG,UUUAUU AAAAAA,AAUUUA,AGAUAU,AGUAGG,AUUUAU,UAUUUA,UUAGAG,UUAGGA,UUAGGG,UUAUUU,UUUAUU
RALY 5 1117 0.014285714 0.0056328094 1.342647 UUUUUU UUUUUC,UUUUUG,UUUUUU
PUM2 3 764 0.009523810 0.0038542926 1.305073 UAAAUA,UACAUA,UAUAUA GUAAAU,GUACAU,GUAGAU,GUAUAU,UAAAUA,UACAUA,UACAUC,UAGAUA,UAUAUA,UGUAAA,UGUACA,UGUAGA,UGUAUA
DAZAP1 14 2878 0.035714286 0.0145052398 1.299927 AAAAAA,AAUUUA,AGGUAA,AGUUAG,AGUUUA,UAGGAU,UAGUUA,UAGUUU,UUUUUU AAAAAA,AAUUUA,AGAUAU,AGGAAA,AGGAAG,AGGAUA,AGGAUG,AGGUAA,AGGUAG,AGGUUA,AGGUUG,AGUAAA,AGUAAG,AGUAGG,AGUAUA,AGUAUG,AGUUAA,AGUUAG,AGUUUA,AGUUUG,GGGGGG,GUAACG,UAGGAA,UAGGAU,UAGGUA,UAGGUU,UAGUAA,UAGUAU,UAGUUA,UAGUUU,UUUUUU
MSI1 4 961 0.011904762 0.0048468360 1.296424 AGUUAG,AGUUGG,UAGUUA,UAGUUG AGGAAG,AGGAGG,AGGUAG,AGGUGG,AGUAAG,AGUAGG,AGUUAG,AGUUGG,UAGGAA,UAGGAG,UAGGUA,UAGGUG,UAGUAA,UAGUAG,UAGUUA,UAGUUG
ZFP36L2 3 774 0.009523810 0.0039046755 1.286336 AUUUAU,UAUUUA,UUUAUU AUUUAU,UAUUUA,UUAUUU,UUUAUU
SART3 3 777 0.009523810 0.0039197904 1.280762 AAAAAA,AGAAAA AAAAAA,AAAAAC,AGAAAA,GAAAAA,GAAAAC
HNRNPCL1 6 1381 0.016666667 0.0069629182 1.259202 CUUUUU,UUUUUU AUUUUU,CUUUUU,UUUUUG,UUUUUU
ELAVL4 13 2916 0.033333333 0.0146966949 1.181474 AAAAAA,AUUUAU,UAUUUA,UUUAUU,UUUGUA,UUUUAU,UUUUUA,UUUUUU AAAAAA,AUCUAA,AUUUAU,GUAUCU,UAUCUA,UAUUUA,UAUUUU,UCUAAU,UGUAUC,UUAUUU,UUGUAU,UUUAUU,UUUGUA,UUUUAU,UUUUUA,UUUUUU
FUS 7 1711 0.019047619 0.0086255542 1.142922 AAAAAA,UUUUUU AAAAAA,CGGUGA,CGGUGG,GGGGGG,GGGUGA,GGGUGC,GGGUGG,GGGUGU,UGGUGA,UGGUGG,UGGUGU,UUUUUU
ELAVL3 8 1928 0.021428571 0.0097188634 1.140676 AUUUAU,UAUUUA,UUUAUU,UUUUUU AUUUAU,AUUUUA,UAUUUA,UAUUUU,UUAUUU,UUUAUU,UUUUUU
KHDRBS1 8 1945 0.021428571 0.0098045143 1.128018 AUUUAA,CAAAAU,UUAAAU,UUUUUU AUAAAA,AUUUAA,AUUUAC,CAAAAU,CUAAAA,CUAAAU,GAAAAC,UAAAAA,UAAAAC,UAAAAG,UUAAAA,UUAAAU,UUUUAC,UUUUUU
ZCRB1 2 666 0.007142857 0.0033605401 1.087808 AUUUAA,GGUUUA AAUUAA,ACUUAA,AUUUAA,GAAUUA,GACUUA,GAUUAA,GAUUUA,GCUUAA,GGAUUA,GGCUUA,GGUUUA,GUUUAA
CELF5 2 669 0.007142857 0.0033756550 1.081334 GUGUUU,UGUGUU GUGUGG,GUGUGU,GUGUUG,GUGUUU,UGUGUG,UGUGUU
AGO2 2 677 0.007142857 0.0034159613 1.064210 AAAAAA AAAAAA,AAAGUG,AAGUGC,AGUGCU,GUGCUU,UAAAGU
QKI 3 904 0.009523810 0.0045596534 1.062615 ACACUA,AUUAAC,CACUAA AAUCAU,ACACAC,ACACUA,ACUAAC,ACUAAU,ACUCAU,ACUUAU,AUCAUA,AUCUAA,AUCUAC,AUUAAC,CACACU,CACUAA,CUAACA,CUAACC,CUAACG,CUAAUC,CUACUC,CUCAUA,UAACCU,UAAUCA,UACUCA,UCAUAU,UCUAAU,UCUACU
HNRNPA1 27 6340 0.066666667 0.0319478033 1.061249 AAAAAA,AAAGAG,AAGAGG,AAUUUA,AGUGGU,AGUUAG,AUUUAA,AUUUAU,CAAAGA,GAAGGU,GAGUGG,GGUUAG,GUUUAG,UAGAGU,UAGGAU,UAGGCA,UAGUUA,UUUAGA,UUUAUA,UUUAUU,UUUUUU AAAAAA,AAAGAG,AAGAGG,AAGGAG,AAGGUG,AAGUAC,AAUUUA,ACUAGA,AGACUA,AGAGGA,AGAUAU,AGAUUA,AGGAAG,AGGAGC,AGGGAC,AGGGCA,AGGGUU,AGUACG,AGUAGG,AGUGAA,AGUGGU,AGUUAG,AUAGAA,AUAGCA,AUAGGG,AUUAGA,AUUUAA,AUUUAU,CAAAGA,CAAGGA,CAGGGA,CCAAGG,CCCCCC,CGUAGG,CUAGAC,GAAGGU,GACUAG,GACUUA,GAGGAA,GAGGAG,GAGUGG,GAUUAG,GCAGGC,GCCAAG,GGAAGG,GGACUU,GGAGCC,GGAGGA,GGCAGG,GGGACU,GGGCAG,GGGUUA,GGUGCG,GGUUAG,GUAAGU,GUACGC,GUAGGG,GUAGGU,GUGGUG,GUUAGG,GUUUAG,UAAGUA,UACGGC,UAGACA,UAGACU,UAGAGA,UAGAGU,UAGAUU,UAGGAA,UAGGAU,UAGGCA,UAGGCU,UAGGGA,UAGGGC,UAGGGU,UAGGUA,UAGGUC,UAGUGA,UAGUUA,UCGGGC,UGGUGC,UUAGAU,UUAGGG,UUAUUU,UUUAGA,UUUAUA,UUUAUU,UUUUUU

Help

  • Note:
    • foreground: number of motifs found in the foreground target sequences (e.g. predicted circRNAs).
    • background: number of motifs found in the background target sequences (e.g. randomly generated circRNAs).
    • foregroundNorm: number of motifs found in the foreground target sequences (+1) divided by the number (or length) of sequences analyzed.
    • backgroundNorm: number of motifs found in background target sequences (+1) divided by the number (or length) of sequences analyzed.
    • log2FC: log2 fold change calculated in this way (foregroundNorm)/(backgroundNorm).
    • motifF: motifs of the corresponding RBP found in the foreground sequences.
    • motifB: motifs of the corresponding RBP found in the background sequences.
