ENSG00000164638:+:7:5287805:5287985

1. Sequences

id gene transcript strand chrom startGR endGR length seq type
ENSG00000164638:+:7:5287805:5287985 ENSG00000164638 ENST00000396872 + 7 5287809 5287985 177 AGGCUGCCAUGGGCUCCGUGGGGAGCCAGCGCCUUGAGGAGCCCAGCGUGGCAGGCACACCAGACCCGGGCGUAGUGAUGAGCUUCACCUUCGACAGUCACCAGCUGGAGGAGGCGGCGGAGGCGGCUCAGGGCCAGGGCCUUAGGGCCAGGGGCGUCCCAGCUUUCACGGAUACUAAGGCUGCCAUGGGCUCCGUGGGGAGCCAGCGCCUUGAGGAGCCCAGCGUG circ
ENSG00000164638:+:7:5287805:5287985 ENSG00000164638 ENST00000396872 + 7 5287809 5287985 22 CACGGAUACUAAGGCUGCCAUG bsj
ENSG00000164638:+:7:5287805:5287985 ENSG00000164638 ENST00000396872 + 7 5287609 5287818 210 CCCGGGUCUUUGAACCUCACAUCCAGUCCUGUUCAGGCACUUUCCUGGCUCCUUUGCAGUGAGGCAUAGCUUGCUUUGGCCAACGAGUGUGACCAAAGUGACAUGUGUCACUCCAGGUAGAAGCUUUAUGGGUCAGUGCAUGAGCCAUGGAUCCCUCAGCCUUCUUCCCUCACCUGCUCUCUCUGCUUUCUCCAAAGCAGAGGCUGCCAU ie_up
ENSG00000164638:+:7:5287805:5287985 ENSG00000164638 ENST00000396872 + 7 5287976 5288185 210 ACGGAUACUAGUAAGUAGGCGUGCGGGCAAGGUGCGGGUCUUGCCCCAAAGCAGGCUGGGCUGUGUGACCCCCAGUGAAGCCUUGCGGUAUCGGGGAGCCAUGGGUGGUCAUGGAGGACUGGAGGCAGUGCCUGUCAGUGUGGAUUAGAUCUGCUGCAUAACAAACACGCCCACCUUCUCAGUGUCUCCGCCCUGAUGCUGCAUGUCCCU ie_down
  • Note:
    • id: unique identifier.
    • gene: represents the gene from which the circRNA arises.
    • transcript: transcript whose exon coordinates overlap with the detected back-spliced junction coordinate and used in the downstream analysis.
    • strand: is the strand from which the gene is transcribed.
    • chrom: is the chromosome from which the circRNA is derived.
    • startGR: is the 5’ coordinate of the genomic range from which the sequence are extracted.
    • endGR: is the 3’ coordinate of the genomic range from which the sequence are extracted.
    • length: length of the extracted sequences.
    • seq: sequence used in the downstream analysis.
    • type: type of sequences retrieved. If type = “circ” the sequences derive from the internal circRNA sequences. If type = “bsj” the sequences derive from the back spliced junctions (BSJ). If type = “ie_up” the Intron or Exon sequences derive from the up-stream of BSJ up to 210 bp. If type = “ie_down” the Intron or Exon sequences derive from the down-stream of BSJ up to 210 bp.

2. RNA Binding Proteins Analysis

RBP on full sequence

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
HNRNPA1L2 1 314 0.01129944 0.0004564992 4.629494 UUAGGG AUAGGG,GUAGGG,UAGGGA,UAGGGU,UUAGGG
RBM42 1 407 0.01129944 0.0005912752 4.256277 ACUAAG AACUAA,AACUAC,ACUAAG,ACUACG
ZC3H10 3 1053 0.02259887 0.0015274610 3.887043 CAGCGC,CCAGCG CAGCGA,CAGCGC,CCAGCG,CGAGCG,GAGCGA,GAGCGC,GCAGCG,GGAGCG
TUT1 1 678 0.01129944 0.0009840095 3.521435 GAUACU AAAUAC,AAUACU,AGAUAC,CAAUAC,CGAUAC,GAUACU
HNRNPA3 3 2140 0.02259887 0.0031027457 2.864633 AGGAGC,GGAGCC AAGGAG,AGGAGC,CAAGGA,CCAAGG,GCCAAG,GGAGCC
SF1 6 4931 0.03954802 0.0071474739 2.468100 ACAGUC,ACUAAG,AUACUA,CAGUCA,GCUGCC,UACUAA ACAGAC,ACAGUC,ACCGAC,ACGAAC,ACUAAC,ACUAAG,ACUAAU,ACUAGC,ACUGAC,ACUUAU,AGUAAC,AGUAAG,AUACUA,AUUAAC,CACAGA,CACCGA,CACUGA,CAGUCA,CGCUGA,CUAACA,GACUAA,GCUAAC,GCUGAC,GCUGCC,UAACAA,UACGAA,UACUAA,UACUAG,UACUGA,UAGUAA,UAUACU,UGCUAA,UGCUGA,UGCUGC
ESRP2 2 2150 0.01694915 0.0031172377 2.442873 GGGGAG,UGGGGA GGGAAA,GGGAAG,GGGAAU,GGGGAA,GGGGAG,GGGGAU,UGGGAA,UGGGGA
RBM3 2 2152 0.01694915 0.0031201361 2.441532 AUACUA,GAUACU AAAACG,AAAACU,AAACGA,AAACUA,AAGACG,AAGACU,AAUACG,AAUACU,AGACGA,AGACUA,AUACGA,AUACUA,GAAACG,GAAACU,GAGACG,GAGACU,GAUACG,GAUACU
HNRNPLL 3 3534 0.02259887 0.0051229360 2.141208 ACACCA,CACACC,GCACAC ACAAAC,ACACAC,ACACCA,ACAUAC,ACCACA,ACCGCA,ACGACA,ACUGCA,AGACGA,CAAACA,CACACA,CACACC,CACCAC,CACCGC,CACUGC,CAGACG,CAUACA,GACGAC,GCAAAC,GCACAC,GCAUAC
CELF6 2 2997 0.01694915 0.0043447134 1.963880 GUGAUG,GUGGGG GUGAGG,GUGAUG,GUGGGG,GUGGUG,GUGUGG,GUGUUG,UGUGAG,UGUGAU,UGUGGG,UGUGGU,UGUGUG,UGUGUU
LIN28A 3 4315 0.02259887 0.0062547643 1.853223 CGGAGG,GGAGGA,UGGAGG AGGAGA,AGGAGU,CGGAGA,CGGAGG,CGGAGU,GGAGAA,GGAGAU,GGAGGA,GGAGGG,GGAGUA,UGGAGA,UGGAGG,UGGAGU
HNRNPDL 6 8759 0.03954802 0.0126950266 1.639342 ACACCA,ACCAGA,ACUAAG,CACCAG,CCAGAC AACAGC,AACCUU,AACUAA,AAUACC,AAUUUA,ACACCA,ACAGCA,ACAUUA,ACCACG,ACCAGA,ACCUUG,ACUAAC,ACUAAG,ACUAGA,ACUAGC,ACUAGG,ACUGCA,ACUUUA,AGAUAU,AGUAGC,AGUAGG,AUACCA,AUCUGA,AUGCGC,AUUAGC,AUUAGG,CACCAG,CACGCA,CACUAG,CAUUAG,CCACGC,CCAGAC,CCUUGC,CCUUUA,CGAGCA,CUAACA,CUAACU,CUAAGC,CUAAGU,CUAGAG,CUAGAU,CUAGCA,CUAGCC,CUAGCG,CUAGCU,CUAGGA,CUAGGC,CUAGUA,CUUGCC,CUUUAA,CUUUAG,GAACUA,GACUAG,GAGUAG,GAUUAG,GCACUA,GCGAGC,GCUAGU,GGACUA,GGAGUA,GGAUUA,GUAGCC,GUAGCU,UAACAG,UAAGUA,UAGGCA,UCUGAC,UGCGCA,UGUCGC,UUAGCC,UUAGGC,UUUAGG
HNRNPH3 5 7688 0.03389831 0.0111429292 1.605085 CGGGCG,GGAGGA,GGGCGU,GGGGAG AAGGGA,AAGGUG,AAUGUG,AGGGAA,AGGGGA,AUCGGG,AUGUGG,AUUGGG,CGAGGG,CGGGCG,CGGGGG,GAAGGG,GAAUGU,GAGGGG,GGAAGG,GGAAUG,GGAGGA,GGAGGG,GGGAAG,GGGAAU,GGGAGG,GGGCGU,GGGCUG,GGGGAG,GGGGCU,GGGGGC,GGGGGG,GGGUCG,GGGUGU,GGUCGA,GUCGAG,UCGAGG,UCGGGC,UGGGUG,UGUGGG,UUGGGU
NOVA1 2 3872 0.01694915 0.0056127669 1.594429 AGUCAC,CAGUCA AACACC,ACCACC,AGCACC,AGUCAC,AUCAAC,AUCACC,AUCAUC,AUUCAU,CAGUCA,CAUUCA,CCCCCC,GGGGGG,UCAGUC,UCAUUC,UUCAUU,UUUUUU
MSI1 1 2770 0.01129944 0.0040157442 1.492511 AGGAGG AGGAAG,AGGAGG,AGGUAG,AGGUGG,AGUAAG,AGUAGG,AGUUAG,AGUUGG,UAGGAA,UAGGAG,UAGGUA,UAGGUG,UAGUAA,UAGUAG,UAGUUA,UAGUUG
HNRNPD 1 2837 0.01129944 0.0041128408 1.458043 UUAGGG AAAAAA,AAUUUA,AGAUAU,AGUAGG,AUUUAU,UAUUUA,UUAGAG,UUAGGA,UUAGGG,UUAUUU,UUUAUU
HNRNPA2B1 5 8607 0.03389831 0.0124747476 1.442203 AGGAGC,AGGGGC,GGAGCC,UUAGGG AAGAAG,AAGGAA,AAGGAG,AAGGGG,AAUUUA,ACUAGA,AGAAGC,AGACUA,AGAUAU,AGGAAC,AGGAGC,AGGGGC,AGUAGG,AUAGCA,AUAGGG,AUUUAA,CAAGAA,CAAGGA,CAAGGG,CCAAGA,CCAAGG,CGAAGG,CUAGAC,GAAGCC,GAAGGA,GACUAG,GCCAAG,GCGAAG,GGAACC,GGAGCC,GGGGCC,GUAGGG,UAGACA,UAGACU,UAGGGA,UAGGGU,UUAGGG,UUUAUA
HNRNPA1 11 18070 0.06779661 0.0261885646 1.372276 AGGAGC,GAGGAG,GCAGGC,GGAGCC,GGAGGA,GGCAGG,UAGGGC,UAGUGA,UUAGGG AAAAAA,AAAGAG,AAGAGG,AAGGAG,AAGGUG,AAGUAC,AAUUUA,ACUAGA,AGACUA,AGAGGA,AGAUAU,AGAUUA,AGGAAG,AGGAGC,AGGGAC,AGGGCA,AGGGUU,AGUACG,AGUAGG,AGUGAA,AGUGGU,AGUUAG,AUAGAA,AUAGCA,AUAGGG,AUUAGA,AUUUAA,AUUUAU,CAAAGA,CAAGGA,CAGGGA,CCAAGG,CCCCCC,CGUAGG,CUAGAC,GAAGGU,GACUAG,GACUUA,GAGGAA,GAGGAG,GAGUGG,GAUUAG,GCAGGC,GCCAAG,GGAAGG,GGACUU,GGAGCC,GGAGGA,GGCAGG,GGGACU,GGGCAG,GGGUUA,GGUGCG,GGUUAG,GUAAGU,GUACGC,GUAGGG,GUAGGU,GUGGUG,GUUAGG,GUUUAG,UAAGUA,UACGGC,UAGACA,UAGACU,UAGAGA,UAGAGU,UAGAUU,UAGGAA,UAGGAU,UAGGCA,UAGGCU,UAGGGA,UAGGGC,UAGGGU,UAGGUA,UAGGUC,UAGUGA,UAGUUA,UCGGGC,UGGUGC,UUAGAU,UUAGGG,UUAUUU,UUUAGA,UUUAUA,UUUAUU,UUUUUU
HNRNPH2 5 9711 0.03389831 0.0140746688 1.268112 CGGGCG,GGAGGA,GGGCGU,GGGGAG AAGGCG,AAGGGA,AAGGGG,AAGGUG,AAUGUG,AGGCGA,AGGGAA,AGGGGA,AUCGGG,AUGUGG,AUUGGG,CAGGAC,CGAGGG,CGGGCG,CGGGGG,CUGGGG,GAAGGG,GAAUGU,GAGGGG,GGAAGG,GGAAUG,GGAGGA,GGAGGG,GGCGAA,GGGAAG,GGGAAU,GGGAGG,GGGCGU,GGGCUG,GGGGAA,GGGGAG,GGGGCU,GGGGGA,GGGGGC,GGGGGG,GGGUCG,GGGUGU,GGUCGA,GUCGAG,UCGAGG,UCGGGC,UGGGGG,UGGGGU,UGGGUG,UGUGGG,UUGGGU
HNRNPL 2 5085 0.01694915 0.0073706513 1.201349 ACACCA,CACACC AAACAA,AAACAC,AAAUAA,AAAUAC,AACAAA,AACACA,AAUAAA,AAUACA,ACACAA,ACACAC,ACACCA,ACACGA,ACAUAA,ACAUAC,ACCACA,CACAAA,CACAAC,CACAAG,CACACA,CACACC,CACCAC,CACGAA,CACGAC,CACGAG,CAUAAA,CAUACA
HNRNPC 1 3471 0.01129944 0.0050316361 1.167151 GGAUAC AUUUUU,CUUUUU,GCAUAC,GGAUAC,GGAUAU,GGAUUC,GGGGGG,GGGUAC,UUUUUA,UUUUUC,UUUUUG,UUUUUU
HNRNPH1 5 10717 0.03389831 0.0155325680 1.125917 CGGGCG,GGAGGA,GGGCGU,GGGGAG AAGGCG,AAGGGA,AAGGGG,AAGGUG,AAUGUG,AGGAAG,AGGCGA,AGGGAA,AGGGGA,AUCGGG,AUGUGG,AUUGGG,CAGGAC,CGAGGG,CGGGCG,CGGGGG,CUGGGG,GAAGGG,GAAGGU,GAAUGU,GAGGAA,GAGGGG,GGAAGG,GGAAUG,GGAGGA,GGAGGG,GGCGAA,GGGAAG,GGGAAU,GGGAGG,GGGCGU,GGGCUG,GGGGAA,GGGGAG,GGGGCU,GGGGGC,GGGGGG,GGGUCG,GGGUGU,GGUCGA,GUCGAG,UCGAGG,UCGGGC,UGGGGG,UGGGGU,UGGGUG,UGUGGG,UUGGGU
YTHDC1 2 5576 0.01694915 0.0080822104 1.068391 GGAUAC,GGCUGC GAAUAC,GAAUGC,GACUAC,GACUGC,GAGUAC,GAGUGC,GCAUAC,GCAUGC,GCCUAC,GCCUGC,GCGUAC,GCGUGC,GGAUAC,GGAUGC,GGCUAC,GGCUGC,GGGUAC,GGGUGC,UAAUAC,UAAUGC,UACUAC,UACUGC,UAGUAC,UAGUGC,UCAUAC,UCAUGC,UCCUAC,UCCUGC,UCGUAC,UCGUGC,UGAUAC,UGAUGC,UGCUAC,UGCUGC,UGGUAC,UGGUGC

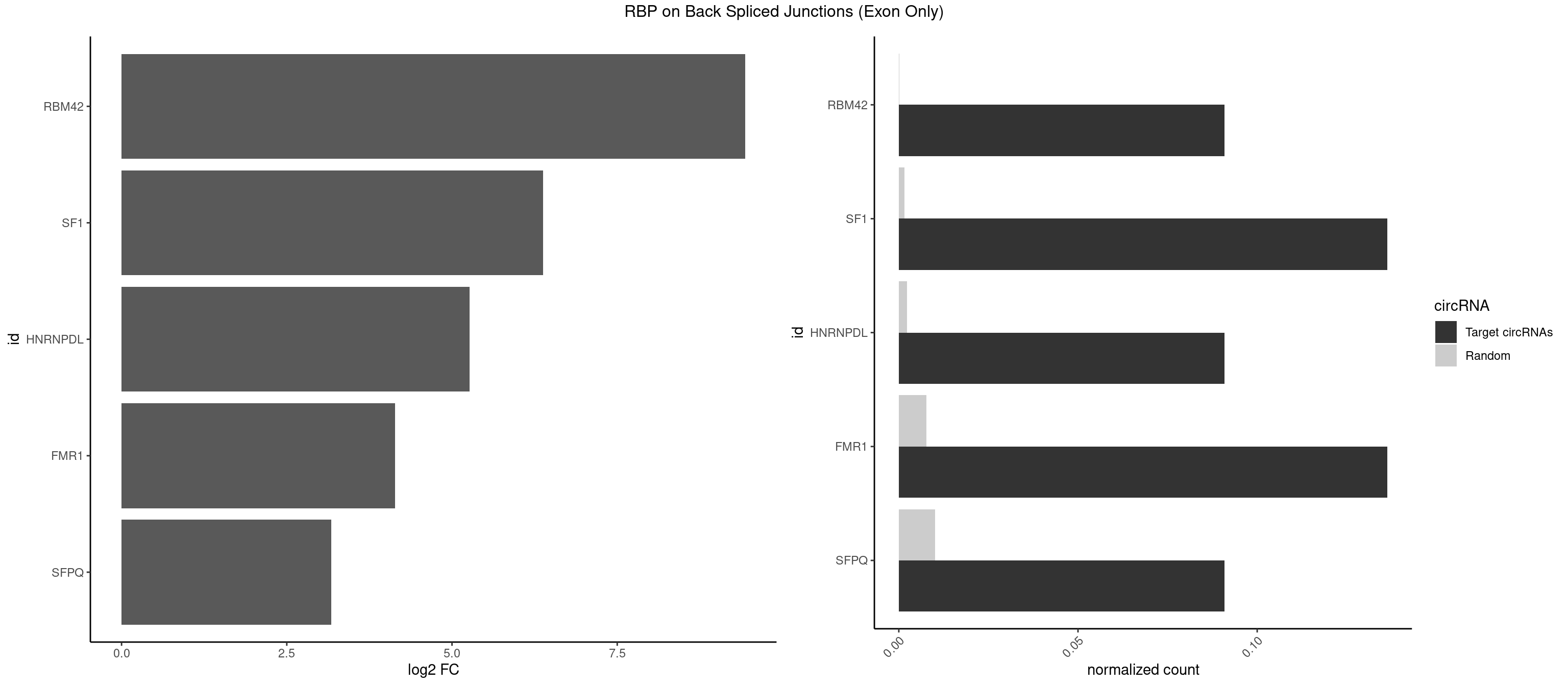

RBP on BSJ (Exon Only)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
RBM42 1 1 0.09090909 0.0001309929 9.438792 ACUAAG ACUACG
SF1 2 24 0.13636364 0.0016374116 6.379898 ACUAAG,UACUAA ACAGAC,ACAGUC,AGUAAG,AUACUA,CACAGA,CACUGA,CAGUCA,GCUGAC,GCUGCC,UACUGA,UGCUAA,UGCUGA,UGCUGC
HNRNPDL 1 35 0.09090909 0.0023578727 5.268867 ACUAAG AACAGC,AAUACC,AAUUUA,ACACCA,ACAGCA,ACCAGA,AGAUAU,AGUAGG,AUCUGA,AUUAGC,AUUAGG,CACGCA,CCAGAC,CUAAGC,CUAAGU,CUAGAU,CUAGGA,CUAGGC,CUUUAG,GAACUA,GAUUAG,GCACUA,GCUAGU,UGCGCA,UUAGCC,UUAGGC,UUUAGG
FMR1 2 117 0.13636364 0.0077285827 4.141111 ACUAAG,CUAAGG AAAAAA,AAGGAA,AAGGAU,AAGGGA,ACUGGG,ACUGGU,AGCAGC,AGCGAA,AGGAAG,AGGAAU,AGGAGG,AGGAGU,AGGAUG,AGGAUU,AGGCAC,AGGGAG,AGUGGC,AUGGAG,CAGCUG,CUAUGG,CUGAGG,CUGGGC,CUGGUG,GAAGGA,GAAGGG,GACAAG,GACAGG,GAGGAU,GCAGCU,GCAUAG,GCGAAG,GCUAAG,GCUGAG,GCUGGG,GGACAA,GGACAG,GGCAUA,GGCUGA,GGCUGG,GGGCAU,GGGCUA,GGGCUG,GUGCGA,GUGGCU,UAAGGA,UAGUGG,UAUGGA,UGACAA,UGACAG,UGAGGA,UGCGGC,UGGAGU,UGGCUG
SFPQ 1 153 0.09090909 0.0100864553 3.172005 CUAAGG AAGAAC,AAGAGC,AAGAGG,AAGCAA,AAGGAA,AAGGAC,AAGGGA,ACUGGG,AGAGAG,AGAGGA,AGAGGU,AGGAAC,AGGACC,AGGGAU,AGGGGG,AUCGGA,CAGGCA,CUGGAG,CUGGGA,GAAGAA,GAAGAG,GAAGCA,GAAGGA,GAGGAA,GAGGAC,GAGGUA,GCAGGC,GGAAGA,GGAGAG,GGAGGA,GGAGGG,GGGGGA,GUAAGA,GUAAUG,GUAGUG,GUAGUU,GUCUGG,GUGAUU,UAAGAG,UAAGGA,UAAGGG,UAAUGG,UAAUUG,UAGAGA,UAGAUC,UAGUGG,UAGUGU,UAGUUG,UCGGAA,UCUAAG,UGAAGC,UGAUGG,UGAUGU,UGAUUG,UGCAGG,UGGAGA,UGGAGC,UGGAGG,UGGUUU,UUAAUG,UUAGUG,UUAGUU,UUGAAG,UUGGUU

RBP on BSJ (Exon and Intron)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
SUPV3L1 1 31 0.004761905 0.0001612253 4.884389 CCGCCC CCGCCC
OAS1 1 35 0.004761905 0.0001813785 4.714464 GCAUAA GCAUAA
RBM25 2 53 0.007142857 0.0002720677 4.714464 AUCGGG,CGGGCA AUCGGG,CGGGCA,UCGGGC
RBFOX2 2 124 0.007142857 0.0006297864 3.503567 UGCAUG UGACUG,UGCAUG
ACO1 6 325 0.016666667 0.0016424829 3.343015 CAGUGA,CAGUGC,CAGUGU CAGUGA,CAGUGC,CAGUGG,CAGUGU
PTBP2 2 146 0.007142857 0.0007406288 3.269679 CUCUCU CUCUCU
RBFOX1 4 287 0.011904762 0.0014510278 3.036392 GCAUGA,GCAUGU,UGCAUG AGCAUG,GCAUGA,GCAUGC,GCAUGU,UGACUG,UGCAUG
RBM6 2 191 0.007142857 0.0009673519 2.884389 AUCCAG,CAUCCA AAUCCA,AUCCAA,AUCCAG,CAUCCA,UAUCCA
SNRPB2 2 288 0.007142857 0.0014560661 2.294425 UGCAGU,UUGCAG AUUGCA,GUAUUG,UAUUGC,UGCAGU,UUGCAG
HNRNPA0 1 200 0.004761905 0.0010126965 2.233337 AGUAGG AAUUUA,AGAUAU,AGUAGG
SRP14 1 218 0.004761905 0.0011033857 2.109602 GCCUGU CCUGUA,CGCCUG,CUGUAG,GCCUGU
RBM24 7 888 0.019047619 0.0044790407 2.088349 AGUGUG,GAGUGU,GUGUGA,GUGUGG,UGUGUG AGAGUG,AGUGUG,GAGUGA,GAGUGG,GAGUGU,GUGUGA,GUGUGG,GUGUGU,UGAGUG,UGUGUG
TUT1 1 230 0.004761905 0.0011638452 2.032640 GAUACU AAAUAC,AAUACU,AGAUAC,CAAUAC,CGAUAC,GAUACU
SAMD4A 5 790 0.014285714 0.0039852882 1.841817 CGGGCA,CGGGUC,GCGGGC,GCGGGU CGGGAA,CGGGAC,CGGGCA,CGGGCC,CGGGUA,CGGGUC,CUGGAA,CUGGAC,CUGGCA,CUGGCC,CUGGUA,CUGGUC,GCGGGA,GCGGGC,GCGGGU,GCUGGA,GCUGGC,GCUGGU
AGO1 1 283 0.004761905 0.0014308746 1.734641 AGGUAG AGGUAG,GAGGUA,GGUAGU,GUAGUA,UGAGGU
SF1 8 1294 0.021428571 0.0065245869 1.715577 AGUAAG,AUACUA,GCUGCC,UAACAA,UACUAG,UAGUAA,UGCUGC ACAGAC,ACAGUC,ACCGAC,ACGAAC,ACUAAC,ACUAAG,ACUAAU,ACUAGC,ACUGAC,ACUUAU,AGUAAC,AGUAAG,AUACUA,AUUAAC,CACAGA,CACCGA,CACUGA,CAGUCA,CGCUGA,CUAACA,GACUAA,GCUAAC,GCUGAC,GCUGCC,UAACAA,UACGAA,UACUAA,UACUAG,UACUGA,UAGUAA,UAUACU,UGCUAA,UGCUGA,UGCUGC
RBM28 1 340 0.004761905 0.0017180572 1.470761 AGUAGG AGUAGA,AGUAGG,AGUAGU,GAGUAG,GUGUAG,UGUAGA,UGUAGG,UGUAGU
HNRNPA3 1 349 0.004761905 0.0017634019 1.433177 GGAGCC AAGGAG,AGGAGC,CAAGGA,CCAAGG,GCCAAG,GGAGCC
NELFE 5 1059 0.014285714 0.0053405885 1.419503 CUCUCU,CUGGCU,UCUCUC,UCUCUG CUCUCU,CUCUGG,CUGGCU,CUGGUU,GCUAAC,GGCUAA,GGUCUC,GGUUAG,GUCUCU,UCUCUC,UCUCUG,UCUGGC,UCUGGU,UGGCUA,UGGUUA
YTHDC1 6 1254 0.016666667 0.0063230552 1.398272 GCGUGC,GGAUAC,GGCUGC,UGAUGC,UGCUGC GAAUAC,GAAUGC,GACUAC,GACUGC,GAGUAC,GAGUGC,GCAUAC,GCAUGC,GCCUAC,GCCUGC,GCGUAC,GCGUGC,GGAUAC,GGAUGC,GGCUAC,GGCUGC,GGGUAC,GGGUGC,UAAUAC,UAAUGC,UACUAC,UACUGC,UAGUAC,UAGUGC,UCAUAC,UCAUGC,UCCUAC,UCCUGC,UCGUAC,UCGUGC,UGAUAC,UGAUGC,UGCUAC,UGCUGC,UGGUAC,UGGUGC
RBM3 2 541 0.007142857 0.0027307537 1.387202 AUACUA,GAUACU AAAACG,AAAACU,AAACGA,AAACUA,AAGACG,AAGACU,AAUACG,AAUACU,AGACGA,AGACUA,AUACGA,AUACUA,GAAACG,GAAACU,GAGACG,GAGACU,GAUACG,GAUACU
MBNL1 16 3258 0.040476190 0.0164197904 1.301638 CCUGCU,CUGCCA,CUGCUC,CUGCUG,CUGCUU,CUUGCU,GCUUGC,UCUGCU,UGCUGC,UGCUUU,UGUCUC,UUGCCC,UUGCUU ACGCUA,ACGCUC,ACGCUG,ACGCUU,AUGCCA,AUGCCC,AUGCCG,AUGCUC,AUGCUU,CCCGCU,CCGCUA,CCGCUC,CCGCUG,CCGCUU,CCUGCU,CGCUGC,CGCUGU,CGCUUC,CGCUUG,CGCUUU,CUCGCU,CUGCCA,CUGCCC,CUGCCG,CUGCCU,CUGCGG,CUGCUA,CUGCUC,CUGCUG,CUGCUU,CUUGCU,CUUGUG,GCGCUC,GCGCUG,GCGCUU,GCUGCG,GCUGCU,GCUUGC,GCUUGU,GCUUUU,GGCUUU,GUCUCG,GUGCUA,GUGCUC,GUGCUG,GUGCUU,UCCGCU,UCGCUA,UCGCUC,UCGCUG,UCGCUU,UCUCGC,UCUGCU,UGCGGC,UGCUGC,UGCUGU,UGCUUC,UGCUUU,UGUCUC,UUCGCU,UUGCCA,UUGCCC,UUGCCG,UUGCCU,UUGCUA,UUGCUC,UUGCUG,UUGCUU,UUGUGC,UUUGCU
MSI1 4 961 0.011904762 0.0048468360 1.296424 AGGUAG,AGUAAG,AGUAGG,UAGUAA AGGAAG,AGGAGG,AGGUAG,AGGUGG,AGUAAG,AGUAGG,AGUUAG,AGUUGG,UAGGAA,UAGGAG,UAGGUA,UAGGUG,UAGUAA,UAGUAG,UAGUUA,UAGUUG
RC3H1 2 631 0.007142857 0.0031841999 1.165570 CCUUCU CCCUUC,CCUUCU,CUUCUG,UCCCUU,UCUGUG,UUCUGU
CELF5 2 669 0.007142857 0.0033756550 1.081334 GUGUGG,UGUGUG GUGUGG,GUGUGU,GUGUUG,GUGUUU,UGUGUG,UGUGUU
LIN28A 3 900 0.009523810 0.0045395002 1.069005 GGAGGA,UGGAGG AGGAGA,AGGAGU,CGGAGA,CGGAGG,CGGAGU,GGAGAA,GGAGAU,GGAGGA,GGAGGG,GGAGUA,UGGAGA,UGGAGG,UGGAGU

Help

  • Note:
    • foreground: number of motifs found in the foreground target sequences (e.g. predicted circRNAs).
    • background: number of motifs found in the background target sequences (e.g. randomly generated circRNAs).
    • foregroundNorm: number of motifs found in the foreground target sequences (+1) divided by the number (or length) of sequences analyzed.
    • backgroundNorm: number of motifs found in background target sequences (+1) divided by the number (or length) of sequences analyzed.
    • log2FC: log2 fold change calculated in this way (foregroundNorm)/(backgroundNorm).
    • motifF: motifs of the corresponding RBP found in the foreground sequences.
    • motifB: motifs of the corresponding RBP found in the background sequences.
