ENSG00000153560:-:3:33411580:33425741

1. Sequences

id gene transcript strand chrom startGR endGR length seq type
ENSG00000153560:-:3:33411580:33425741 ENSG00000153560 ENST00000283629 - 3 33411581 33425741 442 UGAUGUCUUGGCAUUGCCCAUUUUCAAGCAGGAAGAUUCCAGCCUUCCAUUGGAUGGUGAAACAGAGCACCCACCCUUUCAGUAUGUGAUGUGUGCUGCAACGUCACCAGCAGUAAAACUGCAUGAUGAAACGCUUACUUAUUUGAACCAAGGUCAGUCAUAUGAAAUUCGGAUGCUGGAUAAUCGGAAAAUGGGUGAUAUGCCUGAGAUCAAUGGAAAAUUAGUAAAGAGCAUCAUAAGGGUUGUAUUCCAUGACAGACGGCUACAAUACACAGAGCAUCAGCAACUUGAAGGAUGGAAGUGGAAUCGCCCAGGAGACAGACUUCUUGAUUUAGAUAUUCCAAUGUCUGUGGGAAUAAUUGACACAAGGACGAAUCCAAGCCAGUUAAAUGCGGUUGAAUUUCUGUGGGACCCAGCAAAACGCACCUCUGCUUUCAUUCAGUGAUGUCUUGGCAUUGCCCAUUUUCAAGCAGGAAGAUUCCAGCCUUCCAU circ
ENSG00000153560:-:3:33411580:33425741 ENSG00000153560 ENST00000283629 - 3 33411581 33425741 22 CUUUCAUUCAGUGAUGUCUUGG bsj
ENSG00000153560:-:3:33411580:33425741 ENSG00000153560 ENST00000283629 - 3 33425732 33425941 210 UGCCAUCCUUUAGAUGAACCACAUAGCAUUCAUAGUUCUUUUAUUCUACAUAUAAUUUCUGAUCUUAAAAAAAAAACUAUCCCUAAAUGUUUAUAUGCUUUUAAAUAUUUCAGACAAGAUUGGGUGCAUUCAGGAUGAUAUGGCUGUAGACAAAUAUUUCAAACCCAAAGUAAGGUCAGUGUUGAUUUUUUGCUUUUCAGUGAUGUCUUG ie_up
ENSG00000153560:-:3:33411580:33425741 ENSG00000153560 ENST00000283629 - 3 33411381 33411590 210 UUUCAUUCAGGUUUGGAUUUUUACAUUAUUAGAAGCUUACUAACCUAGUUAUUUAGGUCAUGGUAGGAUUGAAUUUUUGAUACAGUAUCAUUUCCUUUAAAUGUCUAUUUAUAAACUAUGUUGUAGUGUCUUUCUAUAUACAUAGUUAGGUUUAAUCUAGUAAGUUCACCCUAUUUUAAACUAACAUAUAUGAAGACAUUCUAUGAUAUG ie_down
  • Note:
    • id: unique identifier.
    • gene: represents the gene from which the circRNA arises.
    • transcript: transcript whose exon coordinates overlap with the detected back-spliced junction coordinate and used in the downstream analysis.
    • strand: is the strand from which the gene is transcribed.
    • chrom: is the chromosome from which the circRNA is derived.
    • startGR: is the 5’ coordinate of the genomic range from which the sequence are extracted.
    • endGR: is the 3’ coordinate of the genomic range from which the sequence are extracted.
    • length: length of the extracted sequences.
    • seq: sequence used in the downstream analysis.
    • type: type of sequences retrieved. If type = “circ” the sequences derive from the internal circRNA sequences. If type = “bsj” the sequences derive from the back spliced junctions (BSJ). If type = “ie_up” the Intron or Exon sequences derive from the up-stream of BSJ up to 210 bp. If type = “ie_down” the Intron or Exon sequences derive from the down-stream of BSJ up to 210 bp.

2. RNA Binding Proteins Analysis

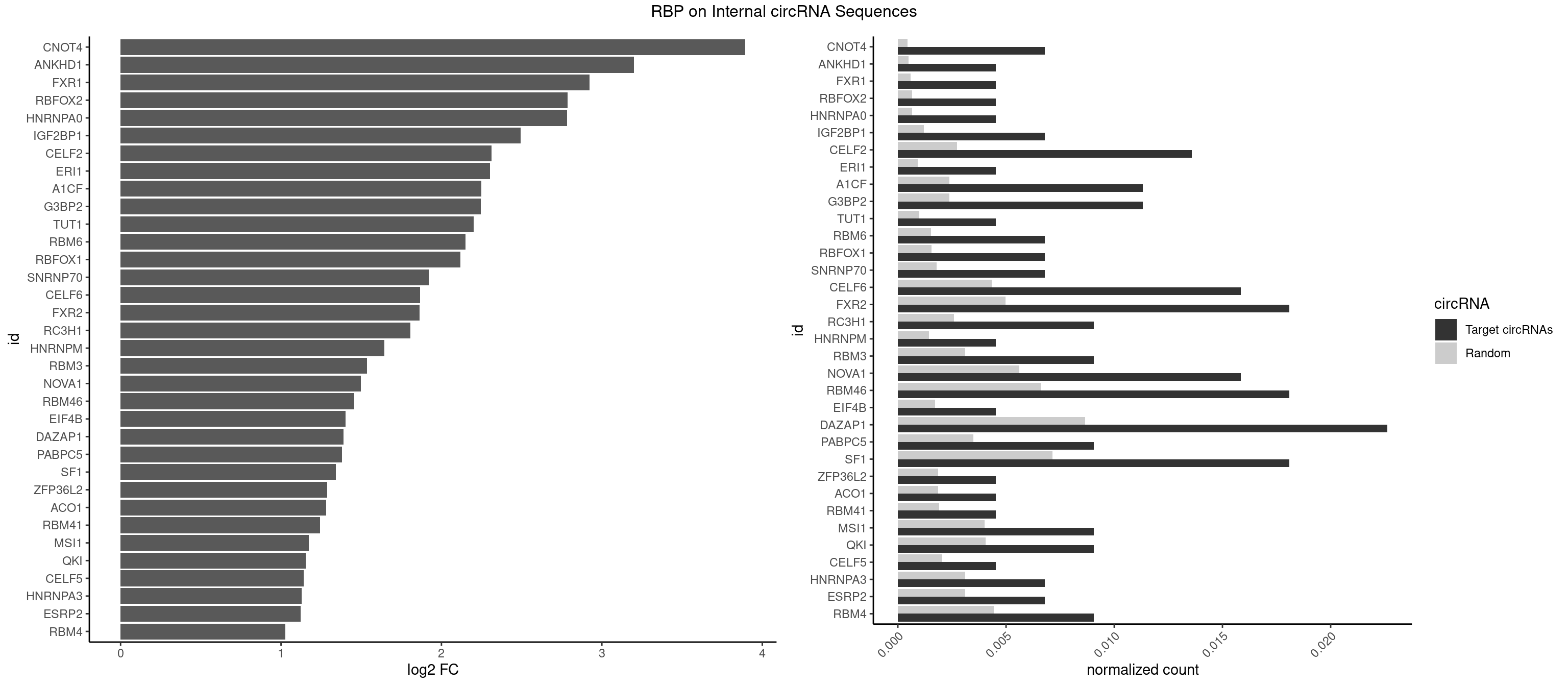

RBP on full sequence

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
CNOT4 2 314 0.006787330 0.0004564992 3.894160 GACAGA GACAGA
ANKHD1 1 339 0.004524887 0.0004927293 3.199014 GACGAA AGACGA,AGACGU,GACGAA,GACGAU,GACGUA,GACGUU
FXR1 1 411 0.004524887 0.0005970720 2.921905 AUGACA ACGACA,ACGACG,AUGACA,AUGACG
RBFOX2 1 452 0.004524887 0.0006564894 2.785038 UGCAUG UGACUG,UGCAUG
HNRNPA0 1 453 0.004524887 0.0006579386 2.781857 AGAUAU AAUUUA,AGAUAU,AGUAGG
IGF2BP1 2 831 0.006787330 0.0012057377 2.492928 AGCACC,GCACCC AAGCAC,ACCCGU,AGCACC,CACCCG,CCCGUU,GCACCC
CELF2 5 1886 0.013574661 0.0027346479 2.311489 AUGUGU,GUAUGU,GUCUGU,UAUGUG,UGUGUG AUGUGU,GUAUGU,GUCUGU,GUGUGU,GUUGUU,UAUGUG,UAUGUU,UGUGUG,UGUUGU,UUGUGU
ERI1 1 632 0.004524887 0.0009173461 2.302344 UUUCAG UUCAGA,UUUCAG
A1CF 4 1642 0.011312217 0.0023810421 2.248217 AUAAUU,CAGUAU,UAAUUG,UCAGUA AGUAUA,AUAAUU,AUCAGU,CAGUAU,GAUCAG,UAAUUA,UAAUUG,UCAGUA,UGAUCA,UUAAUU
G3BP2 4 1644 0.011312217 0.0023839405 2.246462 AGGAUG,GGAUAA,GGAUGG AGGAUA,AGGAUG,AGGAUU,GGAUAA,GGAUAG,GGAUGA,GGAUGG,GGAUUA,GGAUUG
TUT1 1 678 0.004524887 0.0009840095 2.201138 CAAUAC AAAUAC,AAUACU,AGAUAC,CAAUAC,CGAUAC,GAUACU
RBM6 2 1054 0.006787330 0.0015289102 2.150341 AAUCCA,AUCCAA AAUCCA,AUCCAA,AUCCAG,CAUCCA,UAUCCA
RBFOX1 2 1077 0.006787330 0.0015622419 2.119226 GCAUGA,UGCAUG AGCAUG,GCAUGA,GCAUGC,GCAUGU,UGACUG,UGCAUG
SNRNP70 2 1237 0.006787330 0.0017941145 1.919572 GAUCAA,UUCAAG AAUCAA,AUCAAG,AUUCAA,GAUCAA,GUUCAA,UUCAAG
CELF6 6 2997 0.015837104 0.0043447134 1.865976 GUGAUG,UGUGAU,UGUGGG,UGUGUG GUGAGG,GUGAUG,GUGGGG,GUGGUG,GUGUGG,GUGUUG,UGUGAG,UGUGAU,UGUGGG,UGUGGU,UGUGUG,UGUGUU
FXR2 7 3434 0.018099548 0.0049780156 1.862311 AGACAG,AGACGG,GACAGA,GACGAA,GGACGA,UGACAG AGACAA,AGACAG,AGACGA,AGACGG,GACAAA,GACAAG,GACAGA,GACAGG,GACGAA,GACGAG,GACGGA,GACGGG,GGACAA,GGACAG,GGACGA,GGACGG,UGACAA,UGACAG,UGACGA,UGACGG
RC3H1 3 1786 0.009049774 0.0025897275 1.805081 UCUGUG,UUCUGU CCCUUC,CCUUCU,CUUCUG,UCCCUU,UCUGUG,UUCUGU
HNRNPM 1 999 0.004524887 0.0014492040 1.642621 GAAGGA AAGGAA,GAAGGA,GGGGGG
RBM3 3 2152 0.009049774 0.0031201361 1.536273 AAAACG,AAAACU,GAAACG AAAACG,AAAACU,AAACGA,AAACUA,AAGACG,AAGACU,AAUACG,AAUACU,AGACGA,AGACUA,AUACGA,AUACUA,GAAACG,GAAACU,GAGACG,GAGACU,GAUACG,GAUACU
NOVA1 6 3872 0.015837104 0.0056127669 1.496525 AGCACC,CAGUCA,CAUUCA,UCAGUC,UCAUUC,UUCAUU AACACC,ACCACC,AGCACC,AGUCAC,AUCAAC,AUCACC,AUCAUC,AUUCAU,CAGUCA,CAUUCA,CCCCCC,GGGGGG,UCAGUC,UCAUUC,UUCAUU,UUUUUU
RBM46 7 4554 0.018099548 0.0066011240 1.455170 AUCAAU,AUCAUA,AUGAAA,AUGAUG,GAUCAA,GAUGAA AAUCAA,AAUCAU,AAUGAA,AAUGAU,AUCAAA,AUCAAG,AUCAAU,AUCAUA,AUCAUG,AUCAUU,AUGAAA,AUGAAG,AUGAAU,AUGAUA,AUGAUG,AUGAUU,GAUCAA,GAUCAU,GAUGAA,GAUGAU
EIF4B 1 1179 0.004524887 0.0017100607 1.403834 UCGGAA CUCGGA,CUUGGA,GUCGGA,GUUGGA,UCGGAA,UCGGAC,UUGGAA,UUGGAC
DAZAP1 9 5964 0.022624434 0.0086445016 1.388027 AGAUAU,AGGAAG,AGGAUG,AGUAAA,AGUAUG,AGUUAA,UAGUAA AAAAAA,AAUUUA,AGAUAU,AGGAAA,AGGAAG,AGGAUA,AGGAUG,AGGUAA,AGGUAG,AGGUUA,AGGUUG,AGUAAA,AGUAAG,AGUAGG,AGUAUA,AGUAUG,AGUUAA,AGUUAG,AGUUUA,AGUUUG,GGGGGG,GUAACG,UAGGAA,UAGGAU,UAGGUA,UAGGUU,UAGUAA,UAGUAU,UAGUUA,UAGUUU,UUUUUU
PABPC5 3 2400 0.009049774 0.0034795387 1.378986 GAAAAU,GAAAUU AGAAAA,AGAAAG,AGAAAU,GAAAAU,GAAAGU,GAAAUU
SF1 7 4931 0.018099548 0.0071474739 1.340448 ACAGAC,ACUUAU,CACAGA,CAGUCA,UAGUAA,UGCUGC ACAGAC,ACAGUC,ACCGAC,ACGAAC,ACUAAC,ACUAAG,ACUAAU,ACUAGC,ACUGAC,ACUUAU,AGUAAC,AGUAAG,AUACUA,AUUAAC,CACAGA,CACCGA,CACUGA,CAGUCA,CGCUGA,CUAACA,GACUAA,GCUAAC,GCUGAC,GCUGCC,UAACAA,UACGAA,UACUAA,UACUAG,UACUGA,UAGUAA,UAUACU,UGCUAA,UGCUGA,UGCUGC
ZFP36L2 1 1277 0.004524887 0.0018520827 1.288733 UUAUUU AUUUAU,UAUUUA,UUAUUU,UUUAUU
ACO1 1 1283 0.004524887 0.0018607779 1.281976 CAGUGA CAGUGA,CAGUGC,CAGUGG,CAGUGU
RBM41 1 1318 0.004524887 0.0019115000 1.243177 UUACUU AUACAU,AUACUU,UACAUG,UACAUU,UACUUG,UACUUU,UUACAU,UUACUU
MSI1 3 2770 0.009049774 0.0040157442 1.172214 AGGAAG,UAGUAA AGGAAG,AGGAGG,AGGUAG,AGGUGG,AGUAAG,AGUAGG,AGUUAG,AGUUGG,UAGGAA,UAGGAG,UAGGUA,UAGGUG,UAGUAA,UAGUAG,UAGUUA,UAGUUG
QKI 3 2805 0.009049774 0.0040664663 1.154106 ACUUAU,AUCAUA,UCAUAU AAUCAU,ACACAC,ACACUA,ACUAAC,ACUAAU,ACUCAU,ACUUAU,AUCAUA,AUCUAA,AUCUAC,AUUAAC,CACACU,CACUAA,CUAACA,CUAACC,CUAACG,CUAAUC,CUACUC,CUCAUA,UAACCU,UAAUCA,UACUCA,UCAUAU,UCUAAU,UCUACU
CELF5 1 1415 0.004524887 0.0020520728 1.140800 UGUGUG GUGUGG,GUGUGU,GUGUUG,GUGUUU,UGUGUG,UGUGUU
HNRNPA3 2 2140 0.006787330 0.0031027457 1.129299 CAAGGA,CCAAGG AAGGAG,AGGAGC,CAAGGA,CCAAGG,GCCAAG,GGAGCC
ESRP2 2 2150 0.006787330 0.0031172377 1.122576 GGGAAU,UGGGAA GGGAAA,GGGAAG,GGGAAU,GGGGAA,GGGGAG,GGGGAU,UGGGAA,UGGGGA
RBM4 3 3065 0.009049774 0.0044432593 1.026263 CCUUCC,CUUCUU,UUCUUG CCUCUU,CCUUCC,CCUUCU,CGCGCG,CGCGGG,CGCGGU,CUCUUU,CUUCCU,CUUCUU,GCGCGA,GCGCGC,GCGCGG,UCCUUC,UUCCUU,UUCUUG

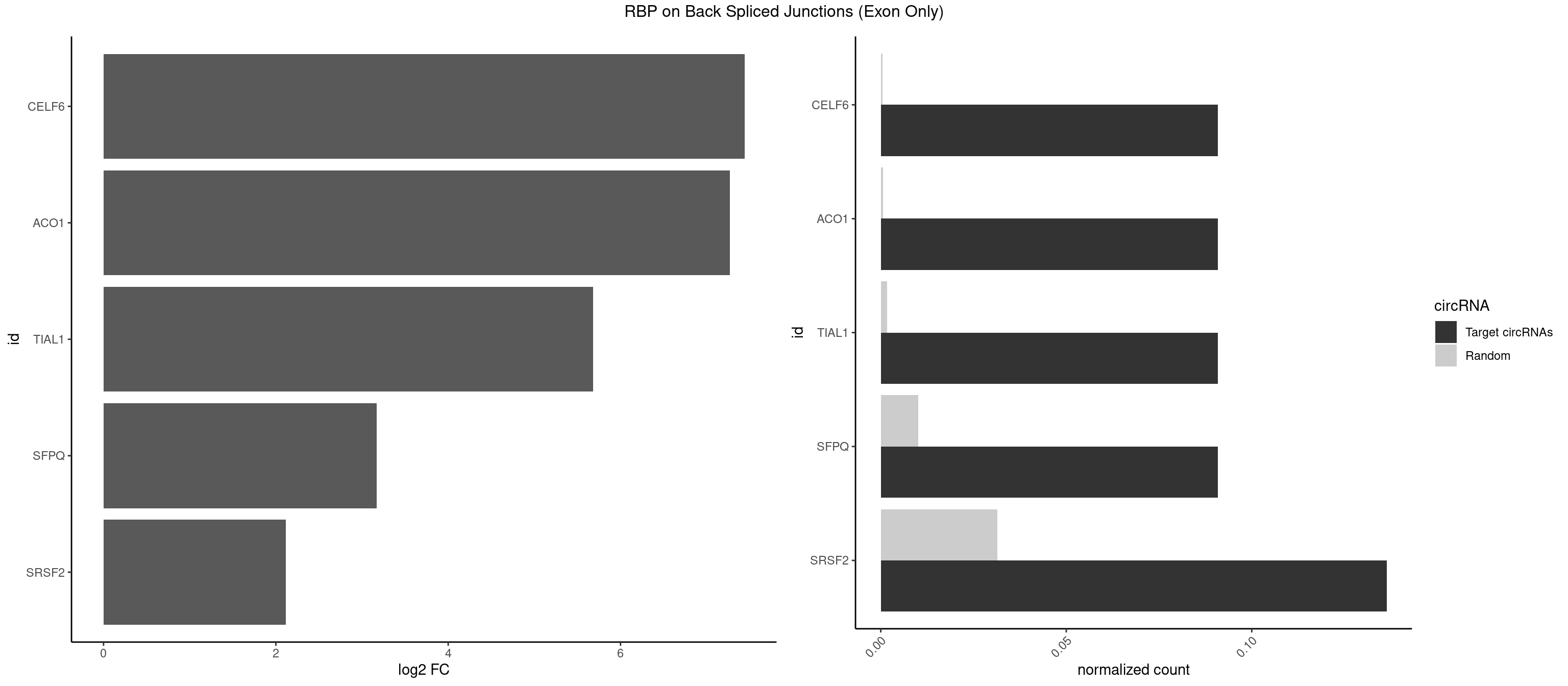

RBP on BSJ (Exon Only)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
CELF6 1 7 0.09090909 0.0005239717 7.438792 GUGAUG GUGAGG,GUGUUG,UGUGGG,UGUGUG
ACO1 1 8 0.09090909 0.0005894682 7.268867 CAGUGA CAGUGA,CAGUGC,CAGUGG
TIAL1 1 26 0.09090909 0.0017684045 5.683904 UUCAGU AAAUUU,AAUUUU,AGUUUU,AUUUUG,CAGUUU,GUUUUU,UAAAUU,UAUUUU,UCAGUU,UUAAAU,UUCAGU,UUUCAG
SFPQ 1 153 0.09090909 0.0100864553 3.172005 GUGAUG AAGAAC,AAGAGC,AAGAGG,AAGCAA,AAGGAA,AAGGAC,AAGGGA,ACUGGG,AGAGAG,AGAGGA,AGAGGU,AGGAAC,AGGACC,AGGGAU,AGGGGG,AUCGGA,CAGGCA,CUGGAG,CUGGGA,GAAGAA,GAAGAG,GAAGCA,GAAGGA,GAGGAA,GAGGAC,GAGGUA,GCAGGC,GGAAGA,GGAGAG,GGAGGA,GGAGGG,GGGGGA,GUAAGA,GUAAUG,GUAGUG,GUAGUU,GUCUGG,GUGAUU,UAAGAG,UAAGGA,UAAGGG,UAAUGG,UAAUUG,UAGAGA,UAGAUC,UAGUGG,UAGUGU,UAGUUG,UCGGAA,UCUAAG,UGAAGC,UGAUGG,UGAUGU,UGAUUG,UGCAGG,UGGAGA,UGGAGC,UGGAGG,UGGUUU,UUAAUG,UUAGUG,UUAGUU,UUGAAG,UUGGUU
SRSF2 2 479 0.13636364 0.0314383023 2.116864 GUGAUG,UCAGUG AAAAGA,AAAGAG,AAGAGA,AAGCAG,AAGCUG,AAGGCG,AAUACC,AAUGCU,ACCACC,ACCACU,ACCAGC,ACCAGU,ACCCCC,ACCCCU,ACUCAA,AGAAGA,AGAAGC,AGAAUA,AGAAUG,AGAGAA,AGAGAU,AGAGGA,AGAGGU,AGAGUA,AGAGUG,AGAGUU,AGAUAA,AGAUCC,AGAUGC,AGCACU,AGCAGA,AGCAGU,AGCCGA,AGCCUC,AGCGGA,AGCUGU,AGGAAG,AGGAGA,AGGAGC,AGGAGG,AGGAGU,AGGCAG,AGGCGU,AGGCUG,AGGGUA,AGUAGG,AGUAGU,AGUGAC,AGUGUU,AUGAUG,AUGCUG,AUGGAG,AUUAGU,AUUCCU,AUUGAU,CAGAGA,CAGAGG,CAGAGU,CAGUAG,CAGUGG,CCACCA,CCAGAU,CCAGCC,CCAGCU,CCAGGG,CCAGGU,CCAGUC,CCAGUG,CCAGUU,CCCGCU,CCCGUG,CCGCUA,CCGGUG,CCUCCG,CCUGCG,CCUGCU,CCUGUU,CGAACG,CGAGGA,CGAGUA,CGAGUG,CGAGUU,CGCAGU,CGCUGC,CGUAAG,CGUGCG,CUACCG,CUAGAA,CUCAAG,CUCCAA,CUCCUG,CUCGUG,CUGAUG,GAAAGG,GAAGAA,GAAGCG,GAAGGC,GAAUAC,GAAUCC,GACCCC,GACGGA,GACUCA,GACUGU,GAGAAG,GAGAAU,GAGAGA,GAGAGU,GAGAUA,GAGAUG,GAGCAC,GAGCAG,GAGCUG,GAGGAA,GAGGAC,GAGGAG,GAGUGA,GAUCCC,GAUCCG,GAUGAU,GAUGCU,GAUGGA,GAUUAG,GAUUGA,GCACUG,GCAGAG,GCAGGG,GCAGGU,GCAGUA,GCAGUG,GCCACC,GCCACU,GCCCAC,GCCGAG,GCCGCC,GCCGUU,GCCUCA,GCCUCC,GCGUGU,GCUGUU,GGAACC,GGAAGG,GGAAUG,GGACCG,GGACGC,GGAGAA,GGAGAG,GGAGAU,GGAGCG,GGAGGA,GGAGUG,GGAGUU,GGAUCC,GGAUGG,GGCAGU,GGCCAC,GGCCGC,GGCCUC,GGCGUG,GGCUCC,GGCUCG,GGCUGA,GGCUGC,GGGAAU,GGGAGC,GGGCAG,GGGUAA,GGGUAC,GGGUAG,GGGUAU,GGGUGA,GGUACG,GGUAGG,GGUCAG,GGUUAC,GGUUCC,GGUUGG,GUAAGC,GUAGGC,GUCAGU,GUCGCC,GUCUAA,GUGCAG,GUUAAU,GUUCCC,GUUCCU,GUUCGA,GUUCUG,GUUGGC,GUUUCG,UAAGCU,UACGAG,UACGUG,UAGGCU,UAUGCU,UCACCG,UCAGUG,UCCAGA,UCCAGC,UCCAGG,UCCAGU,UCCUGC,UCCUGU,UCGAGU,UCGUGC,UGAGCU,UGAUCG,UGAUGG,UGCAGA,UGCAGU,UGCCGU,UGCGGU,UGCUGU,UGGAGA,UGGAGG,UGGAGU,UGGCAG,UGUUCC,UUAAUG,UUACUG,UUAGUG,UUCCAG,UUCCCG,UUCCUA,UUCCUG,UUCGAG,UUGUUG

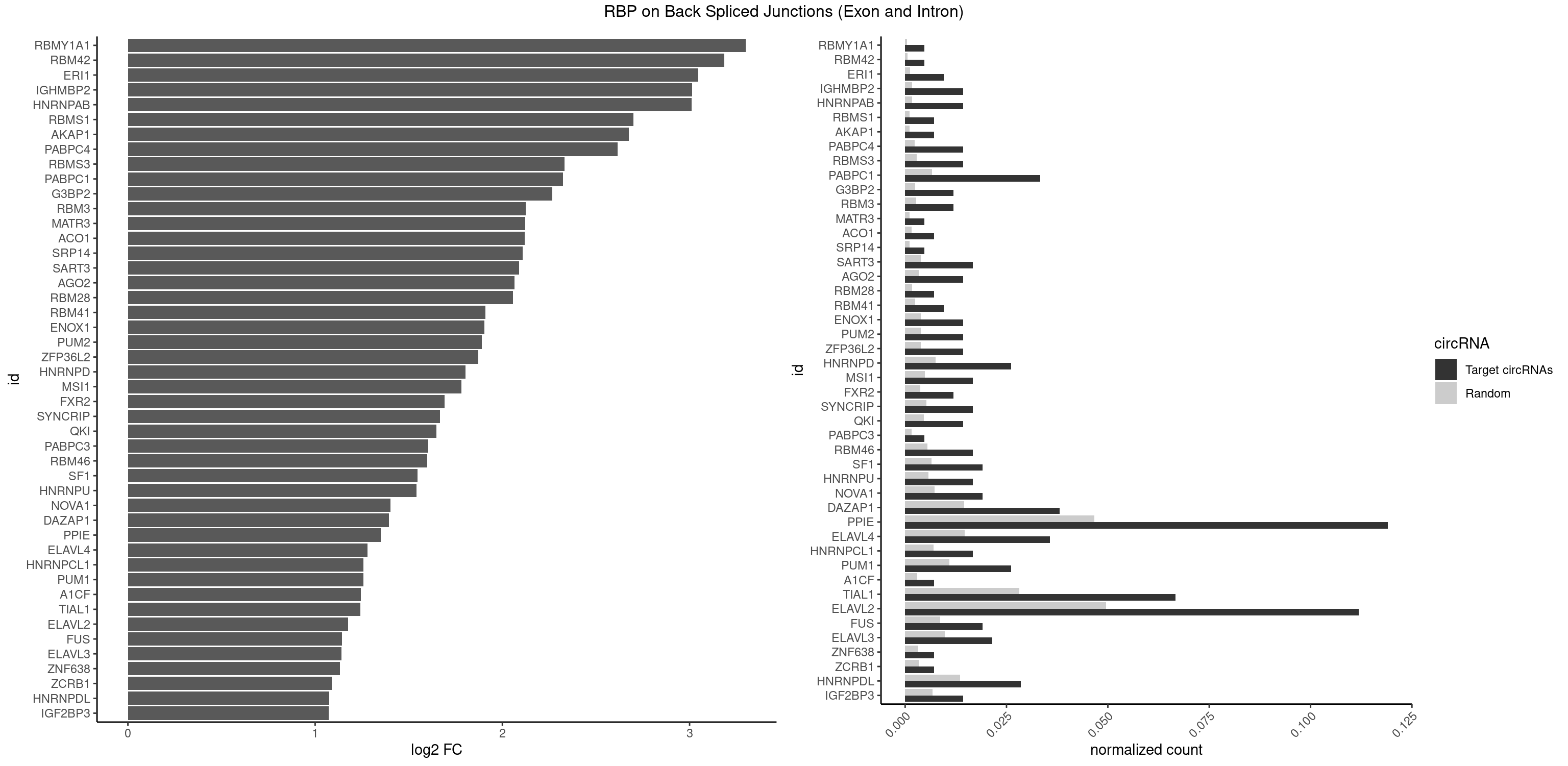

RBP on BSJ (Exon and Intron)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
RBMY1A1 1 95 0.004761905 0.0004836759 3.299426 ACAAGA ACAAGA,CAAGAC
RBM42 1 103 0.004761905 0.0005239823 3.183949 AACUAA AACUAA,AACUAC,ACUAAG,ACUACG
ERI1 3 228 0.009523810 0.0011537686 3.045185 UUCAGA,UUUCAG UUCAGA,UUUCAG
IGHMBP2 5 350 0.014285714 0.0017684401 3.014024 AAAAAA AAAAAA
HNRNPAB 5 351 0.014285714 0.0017734784 3.009919 AAGACA,AGACAA,AUAGCA,GACAAA AAAGAC,AAGACA,ACAAAG,AGACAA,AUAGCA,CAAAGA,GACAAA
RBMS1 2 217 0.007142857 0.0010983474 2.701167 AUAUAC,UAUAUA AUAUAC,AUAUAG,GAUAUA,UAUAUA
AKAP1 2 221 0.007142857 0.0011185006 2.674935 AUAUAU,UAUAUA AUAUAU,UAUAUA
PABPC4 5 462 0.014285714 0.0023327287 2.614483 AAAAAA AAAAAA,AAAAAG
RBMS3 5 562 0.014285714 0.0028365578 2.332360 AUAUAU,CAUAUA,CUAUAU,UAUAUA AAUAUA,AUAUAG,AUAUAU,CAUAUA,CUAUAG,CUAUAU,UAUAGA,UAUAGC,UAUAUA,UAUAUC
PABPC1 13 1321 0.033333333 0.0066606207 2.323237 AAAAAA,AAAAAC,ACAAAU,ACUAAC,CAAACC,CAAAUA,CUAACA,CUAACC AAAAAA,AAAAAC,ACAAAC,ACAAAU,ACGAAC,ACGAAU,ACUAAC,ACUAAU,AGAAAA,CAAACA,CAAACC,CAAAUA,CAAAUC,CGAACA,CGAACC,CGAAUA,CGAAUC,CUAACA,CUAACC,CUAAUA,CUAAUC,GAAAAA,GAAAAC
G3BP2 4 490 0.011904762 0.0024738009 2.266737 AGGAUG,AGGAUU,GGAUGA,GGAUUG AGGAUA,AGGAUG,AGGAUU,GGAUAA,GGAUAG,GGAUGA,GGAUGG,GGAUUA,GGAUUG
RBM3 4 541 0.011904762 0.0027307537 2.124168 AAAACU,AAACUA AAAACG,AAAACU,AAACGA,AAACUA,AAGACG,AAGACU,AAUACG,AAUACU,AGACGA,AGACUA,AUACGA,AUACUA,GAAACG,GAAACU,GAGACG,GAGACU,GAUACG,GAUACU
MATR3 1 216 0.004761905 0.0010933091 2.122837 AUCUUA AAUCUU,AUCUUA,AUCUUG,CAUCUU
ACO1 2 325 0.007142857 0.0016424829 2.120623 CAGUGA,CAGUGU CAGUGA,CAGUGC,CAGUGG,CAGUGU
SRP14 1 218 0.004761905 0.0011033857 2.109602 CUGUAG CCUGUA,CGCCUG,CUGUAG,GCCUGU
SART3 6 777 0.016666667 0.0039197904 2.088117 AAAAAA,AAAAAC AAAAAA,AAAAAC,AGAAAA,GAAAAA,GAAAAC
AGO2 5 677 0.014285714 0.0034159613 2.064210 AAAAAA AAAAAA,AAAGUG,AAGUGC,AGUGCU,GUGCUU,UAAAGU
RBM28 2 340 0.007142857 0.0017180572 2.055723 UGUAGA,UGUAGU AGUAGA,AGUAGG,AGUAGU,GAGUAG,GUGUAG,UGUAGA,UGUAGG,UGUAGU
RBM41 3 502 0.009523810 0.0025342604 1.909974 AUACAU,UACAUU,UUACAU AUACAU,AUACUU,UACAUG,UACAUU,UACUUG,UACUUU,UUACAU,UUACUU
ENOX1 5 756 0.014285714 0.0038139863 1.905202 AAGACA,AUACAG,CAGACA,UAGACA,UAUACA AAGACA,AAUACA,AGACAG,AGGACA,AGUACA,AUACAG,CAGACA,CAUACA,CGGACA,CGUACA,GGACAG,GUACAG,UAGACA,UAUACA,UGGACA,UGUACA
PUM2 5 764 0.014285714 0.0038542926 1.890035 UAAAUA,UACAUA,UAUAUA,UGUAGA GUAAAU,GUACAU,GUAGAU,GUAUAU,UAAAUA,UACAUA,UACAUC,UAGAUA,UAUAUA,UGUAAA,UGUACA,UGUAGA,UGUAUA
ZFP36L2 5 774 0.014285714 0.0039046755 1.871299 AUUUAU,UAUUUA,UUAUUU,UUUAUU AUUUAU,UAUUUA,UUAUUU,UUUAUU
HNRNPD 10 1488 0.026190476 0.0075020153 1.803692 AAAAAA,AUUUAU,UAUUUA,UUAUUU,UUUAUU AAAAAA,AAUUUA,AGAUAU,AGUAGG,AUUUAU,UAUUUA,UUAGAG,UUAGGA,UUAGGG,UUAUUU,UUUAUU
MSI1 6 961 0.016666667 0.0048468360 1.781850 AGUAAG,AGUUAG,UAGUAA,UAGUUA AGGAAG,AGGAGG,AGGUAG,AGGUGG,AGUAAG,AGUAGG,AGUUAG,AGUUGG,UAGGAA,UAGGAG,UAGGUA,UAGGUG,UAGUAA,UAGUAG,UAGUUA,UAGUUG
FXR2 4 730 0.011904762 0.0036829907 1.692589 AGACAA,GACAAA,GACAAG AGACAA,AGACAG,AGACGA,AGACGG,GACAAA,GACAAG,GACAGA,GACAGG,GACGAA,GACGAG,GACGGA,GACGGG,GGACAA,GGACAG,GGACGA,GGACGG,UGACAA,UGACAG,UGACGA,UGACGG
SYNCRIP 6 1041 0.016666667 0.0052498992 1.666604 AAAAAA,UUUUUU AAAAAA,UUUUUU
QKI 5 904 0.014285714 0.0045596534 1.647577 ACUAAC,CUAACA,CUAACC,UAACCU AAUCAU,ACACAC,ACACUA,ACUAAC,ACUAAU,ACUCAU,ACUUAU,AUCAUA,AUCUAA,AUCUAC,AUUAAC,CACACU,CACUAA,CUAACA,CUAACC,CUAACG,CUAAUC,CUACUC,CUCAUA,UAACCU,UAAUCA,UACUCA,UCAUAU,UCUAAU,UCUACU
PABPC3 1 310 0.004761905 0.0015669085 1.603618 AAAAAC AAAAAC,AAAACA,AAAACC,GAAAAC
RBM46 6 1091 0.016666667 0.0055018138 1.598986 AUCAUU,AUGAAG,AUGAUA,GAUGAA,GAUGAU AAUCAA,AAUCAU,AAUGAA,AAUGAU,AUCAAA,AUCAAG,AUCAAU,AUCAUA,AUCAUG,AUCAUU,AUGAAA,AUGAAG,AUGAAU,AUGAUA,AUGAUG,AUGAUU,GAUCAA,GAUCAU,GAUGAA,GAUGAU
SF1 7 1294 0.019047619 0.0065245869 1.545652 ACUAAC,AGUAAG,CUAACA,UACUAA,UAGUAA ACAGAC,ACAGUC,ACCGAC,ACGAAC,ACUAAC,ACUAAG,ACUAAU,ACUAGC,ACUGAC,ACUUAU,AGUAAC,AGUAAG,AUACUA,AUUAAC,CACAGA,CACCGA,CACUGA,CAGUCA,CGCUGA,CUAACA,GACUAA,GCUAAC,GCUGAC,GCUGCC,UAACAA,UACGAA,UACUAA,UACUAG,UACUGA,UAGUAA,UAUACU,UGCUAA,UGCUGA,UGCUGC
HNRNPU 6 1136 0.016666667 0.0057285369 1.540727 AAAAAA,UUUUUU AAAAAA,CCCCCC,GGGGGG,UUUUUU
NOVA1 7 1428 0.019047619 0.0071997179 1.403598 AUUCAU,CAUUCA,UCAUUC,UUCAUU,UUUUUU AACACC,ACCACC,AGCACC,AGUCAC,AUCAAC,AUCACC,AUCAUC,AUUCAU,CAGUCA,CAUUCA,CCCCCC,GGGGGG,UCAGUC,UCAUUC,UUCAUU,UUUUUU
DAZAP1 15 2878 0.038095238 0.0145052398 1.393037 AAAAAA,AGGAUG,AGUAAG,AGUUAG,UAGGAU,UAGGUU,UAGUAA,UAGUUA,UUUUUU AAAAAA,AAUUUA,AGAUAU,AGGAAA,AGGAAG,AGGAUA,AGGAUG,AGGUAA,AGGUAG,AGGUUA,AGGUUG,AGUAAA,AGUAAG,AGUAGG,AGUAUA,AGUAUG,AGUUAA,AGUUAG,AGUUUA,AGUUUG,GGGGGG,GUAACG,UAGGAA,UAGGAU,UAGGUA,UAGGUU,UAGUAA,UAGUAU,UAGUUA,UAGUUU,UUUUUU
PPIE 49 9262 0.119047619 0.0466696896 1.350981 AAAAAA,AAAUAU,AAUAUU,AAUUUU,AUAAUU,AUAUAA,AUAUAU,AUAUUU,AUUAUU,AUUUAU,AUUUUA,AUUUUU,UAAAAA,UAAAUA,UAAUUU,UAUAAA,UAUAAU,UAUAUA,UAUUUA,UAUUUU,UUAAAA,UUAAAU,UUAUAA,UUAUAU,UUAUUA,UUAUUU,UUUAAA,UUUAAU,UUUAUA,UUUAUU,UUUUAA,UUUUAU,UUUUUA,UUUUUU AAAAAA,AAAAAU,AAAAUA,AAAAUU,AAAUAA,AAAUAU,AAAUUA,AAAUUU,AAUAAA,AAUAAU,AAUAUA,AAUAUU,AAUUAA,AAUUAU,AAUUUA,AAUUUU,AUAAAA,AUAAAU,AUAAUA,AUAAUU,AUAUAA,AUAUAU,AUAUUA,AUAUUU,AUUAAA,AUUAAU,AUUAUA,AUUAUU,AUUUAA,AUUUAU,AUUUUA,AUUUUU,UAAAAA,UAAAAU,UAAAUA,UAAAUU,UAAUAA,UAAUAU,UAAUUA,UAAUUU,UAUAAA,UAUAAU,UAUAUA,UAUAUU,UAUUAA,UAUUAU,UAUUUA,UAUUUU,UUAAAA,UUAAAU,UUAAUA,UUAAUU,UUAUAA,UUAUAU,UUAUUA,UUAUUU,UUUAAA,UUUAAU,UUUAUA,UUUAUU,UUUUAA,UUUUAU,UUUUUA,UUUUUU
ELAVL4 14 2916 0.035714286 0.0146966949 1.281010 AAAAAA,AUUUAU,UAUUUA,UAUUUU,UUAUUU,UUUAUU,UUUUAU,UUUUUA,UUUUUU AAAAAA,AUCUAA,AUUUAU,GUAUCU,UAUCUA,UAUUUA,UAUUUU,UCUAAU,UGUAUC,UUAUUU,UUGUAU,UUUAUU,UUUGUA,UUUUAU,UUUUUA,UUUUUU
HNRNPCL1 6 1381 0.016666667 0.0069629182 1.259202 AUUUUU,UUUUUG,UUUUUU AUUUUU,CUUUUU,UUUUUG,UUUUUU
PUM1 10 2172 0.026190476 0.0109482064 1.258348 AAUAUU,AAUGUU,UAAAUA,UACAUA,UAUAUA,UGUAGA,UUGUAG,UUUAAU AAUAUU,AAUGUU,AAUUGU,ACAUAA,AGAAUU,AGAUAA,AUUGUA,CAGAAU,CCAGAA,CUUGUA,GAAUUG,GUAAAU,GUAAUA,GUACAU,GUAGAU,GUAUAU,GUCCAG,UAAAUA,UAAUAU,UAAUGU,UACAUA,UACAUC,UAGAUA,UAUAUA,UGUAAA,UGUAAU,UGUACA,UGUAGA,UGUAUA,UGUCCA,UUAAUG,UUGUAC,UUGUAG,UUUAAU
A1CF 2 598 0.007142857 0.0030179363 1.242939 AUAAUU,CAGUAU AGUAUA,AUAAUU,AUCAGU,CAGUAU,GAUCAG,UAAUUA,UAAUUG,UCAGUA,UGAUCA,UUAAUU
TIAL1 27 5597 0.066666667 0.0282043531 1.241048 AAUUUU,AUUUUA,AUUUUU,CUUUUA,CUUUUC,UAUUUU,UUAAAU,UUAUUU,UUCAGU,UUUAAA,UUUAUU,UUUCAG,UUUUAA,UUUUAU,UUUUCA,UUUUUA,UUUUUG,UUUUUU AAAUUU,AAUUUU,AGUUUU,AUUUUA,AUUUUC,AUUUUG,AUUUUU,CAGUUU,CUUUUA,CUUUUC,CUUUUG,CUUUUU,GUUUUC,GUUUUU,UAAAUU,UAUUUU,UCAGUU,UUAAAU,UUAUUU,UUCAGU,UUUAAA,UUUAUU,UUUCAG,UUUUAA,UUUUAU,UUUUCA,UUUUUA,UUUUUC,UUUUUG,UUUUUU
ELAVL2 46 9826 0.111904762 0.0495112858 1.176442 AAUUUU,AUAUUU,AUUAUU,AUUUAG,AUUUAU,AUUUUA,AUUUUU,CUUUAA,CUUUCU,CUUUUA,GAUUUU,UAAGUU,UAAUUU,UAGUUA,UAUAUA,UAUGUU,UAUUUA,UAUUUU,UCAUUU,UCUUUU,UGAUUU,UUAUAU,UUAUUU,UUCAUU,UUCUUU,UUGAUU,UUUAAU,UUUAUA,UUUAUU,UUUCAU,UUUGAU,UUUUAA,UUUUAU,UUUUUA,UUUUUG,UUUUUU AAUUUA,AAUUUG,AAUUUU,AUACUU,AUAUUU,AUUAUU,AUUUAA,AUUUAC,AUUUAG,AUUUAU,AUUUUA,AUUUUC,AUUUUG,AUUUUU,CAUUUU,CUUAUA,CUUUAA,CUUUCU,CUUUUA,CUUUUU,GAUUUA,GAUUUU,GUAUUG,GUUUUA,GUUUUC,GUUUUU,UAAGUU,UAAUUU,UACUUU,UAGUUA,UAUACU,UAUAUA,UAUAUU,UAUGUU,UAUUAU,UAUUGA,UAUUGU,UAUUUA,UAUUUG,UAUUUU,UCAUUU,UCUUAU,UCUUUU,UGAUUU,UGUAUU,UUAAGU,UUAAUU,UUACUU,UUAGUU,UUAUAC,UUAUAU,UUAUGU,UUAUUG,UUAUUU,UUCAUU,UUCUUU,UUGAUU,UUGUAU,UUUAAG,UUUAAU,UUUACU,UUUAGU,UUUAUA,UUUAUG,UUUAUU,UUUCAU,UUUCUU,UUUGAU,UUUUAA,UUUUAG,UUUUAU,UUUUUA,UUUUUC,UUUUUG,UUUUUU
FUS 7 1711 0.019047619 0.0086255542 1.142922 AAAAAA,GGGUGC,UUUUUU AAAAAA,CGGUGA,CGGUGG,GGGGGG,GGGUGA,GGGUGC,GGGUGG,GGGUGU,UGGUGA,UGGUGG,UGGUGU,UUUUUU
ELAVL3 8 1928 0.021428571 0.0097188634 1.140676 AUUUAU,AUUUUA,UAUUUA,UAUUUU,UUAUUU,UUUAUU,UUUUUU AUUUAU,AUUUUA,UAUUUA,UAUUUU,UUAUUU,UUUAUU,UUUUUU
ZNF638 2 646 0.007142857 0.0032597743 1.131729 GUUCUU,UGUUGU CGUUCG,CGUUCU,CGUUGG,CGUUGU,GGUUCG,GGUUCU,GGUUGG,GGUUGU,GUUCGU,GUUCUU,GUUGGU,GUUGUU,UGUUCG,UGUUCU,UGUUGG,UGUUGU
ZCRB1 2 666 0.007142857 0.0033605401 1.087808 GGUUUA,GUUUAA AAUUAA,ACUUAA,AUUUAA,GAAUUA,GACUUA,GAUUAA,GAUUUA,GCUUAA,GGAUUA,GGCUUA,GGUUUA,GUUUAA
HNRNPDL 11 2689 0.028571429 0.0135530028 1.075961 AACUAA,ACAUUA,ACUAAC,CCUUUA,CUAACA,CUAGUA,CUUUAA,CUUUAG,UUUAGG AACAGC,AACCUU,AACUAA,AAUACC,AAUUUA,ACACCA,ACAGCA,ACAUUA,ACCACG,ACCAGA,ACCUUG,ACUAAC,ACUAAG,ACUAGA,ACUAGC,ACUAGG,ACUGCA,ACUUUA,AGAUAU,AGUAGC,AGUAGG,AUACCA,AUCUGA,AUGCGC,AUUAGC,AUUAGG,CACCAG,CACGCA,CACUAG,CAUUAG,CCACGC,CCAGAC,CCUUGC,CCUUUA,CGAGCA,CUAACA,CUAACU,CUAAGC,CUAAGU,CUAGAG,CUAGAU,CUAGCA,CUAGCC,CUAGCG,CUAGCU,CUAGGA,CUAGGC,CUAGUA,CUUGCC,CUUUAA,CUUUAG,GAACUA,GACUAG,GAGUAG,GAUUAG,GCACUA,GCGAGC,GCUAGU,GGACUA,GGAGUA,GGAUUA,GUAGCC,GUAGCU,UAACAG,UAAGUA,UAGGCA,UCUGAC,UGCGCA,UGUCGC,UUAGCC,UUAGGC,UUUAGG
IGF2BP3 5 1348 0.014285714 0.0067966546 1.071676 AAAAAC,ACAUUC,CAUUCA AAAAAC,AAAACA,AAAAUC,AAACAC,AAACUC,AAAUAC,AAAUCA,AAAUUC,AACACA,AACUCA,AAUACA,AAUUCA,ACAAAC,ACAAUC,ACACAC,ACACUC,ACAUAC,ACAUUC,CAAACA,CAAUCA,CACACA,CACUCA,CAUACA,CAUUCA

Help

  • Note:
    • foreground: number of motifs found in the foreground target sequences (e.g. predicted circRNAs).
    • background: number of motifs found in the background target sequences (e.g. randomly generated circRNAs).
    • foregroundNorm: number of motifs found in the foreground target sequences (+1) divided by the number (or length) of sequences analyzed.
    • backgroundNorm: number of motifs found in background target sequences (+1) divided by the number (or length) of sequences analyzed.
    • log2FC: log2 fold change calculated in this way (foregroundNorm)/(backgroundNorm).
    • motifF: motifs of the corresponding RBP found in the foreground sequences.
    • motifB: motifs of the corresponding RBP found in the background sequences.
