ENSG00000285043:+:16:30069305:30070029

1. Sequences

id gene transcript strand chrom startGR endGR length seq type
ENSG00000285043:+:16:30069305:30070029 ENSG00000285043 ENST00000566897 + 16 30069306 30070029 459 AAUGGCAUUGUGCCCAUCGUGGAGCCUGAGAUCCUCCCUGAUGGGGACCAUGACUUGAAGCGCUGCCAGUAUGUGACCGAGAAGGUGCUGGCUGCUGUCUACAAGGCUCUGAGUGACCACCACAUCUACCUGGAAGGCACCUUGCUGAAGCCCAACAUGGUCACCCCAGGCCAUGCUUGCACUCAGAAGUUUUCUCAUGAGGAGAUUGCCAUGGCGACCGUCACAGCGCUGCGCCGCACAGUGCCCCCCGCUGUCACUGGGAUCACCUUCCUGUCUGGAGGCCAGAGUGAGGAGGAGGCGUCCAUCAACCUCAAUGCCAUUAACAAGUGCCCCCUGCUGAAGCCCUGGGCCCUGACCUUCUCCUACGGCCGAGCCCUGCAGGCCUCUGCCCUGAAGGCCUGGGGCGGGAAGAAGGAGAACCUGAAGGCUGCGCAGGAGGAGUAUGUCAAGCGAGCCCUGAAUGGCAUUGUGCCCAUCGUGGAGCCUGAGAUCCUCCCUGAUGGGGACCA circ
ENSG00000285043:+:16:30069305:30070029 ENSG00000285043 ENST00000566897 + 16 30069306 30070029 22 AGCGAGCCCUGAAUGGCAUUGU bsj
ENSG00000285043:+:16:30069305:30070029 ENSG00000285043 ENST00000566897 + 16 30069106 30069315 210 CUCAAGGGCUGUUGAAGGCAGAGGGGCCAAGGAGGGAUGGUGGGUGGAUCUGAGGCGGCUCUUGUCUCCUGUAAUCUGAGGGCUUUGAAGCCUGAGUCCCUGGCAUCAUCAAGAUACGGUCUUGACCAGUGGCUGUGGAGAGAUGUAGGUGGGACUCUGGGUUAGGAGGCCUCACAGUGACCCUGUCCCUCGCCCUGCAGAAUGGCAUUG ie_up
ENSG00000285043:+:16:30069305:30070029 ENSG00000285043 ENST00000566897 + 16 30070020 30070229 210 GCGAGCCCUGGUAAGGAUAGGCAGGAGGUGGGCAGGGUGCCUGGGUGGAUGGGACUCGGAGAAGAGCCCUUCUCACUCCACCCCUCUCCCUGCUUAGGCCAACAGCCUUGCCUGUCAAGGAAAGUACACUCCGAGCGGUCAGGCUGGGGCUGCUGCCAGCGAGUCCCUCUUCGUCUCUAACCACGCCUAUUAAGCGGAGGUGUUCCCAGG ie_down
  • Note:
    • id: unique identifier.
    • gene: represents the gene from which the circRNA arises.
    • transcript: transcript whose exon coordinates overlap with the detected back-spliced junction coordinate and used in the downstream analysis.
    • strand: is the strand from which the gene is transcribed.
    • chrom: is the chromosome from which the circRNA is derived.
    • startGR: is the 5’ coordinate of the genomic range from which the sequence are extracted.
    • endGR: is the 3’ coordinate of the genomic range from which the sequence are extracted.
    • length: length of the extracted sequences.
    • seq: sequence used in the downstream analysis.
    • type: type of sequences retrieved. If type = “circ” the sequences derive from the internal circRNA sequences. If type = “bsj” the sequences derive from the back spliced junctions (BSJ). If type = “ie_up” the Intron or Exon sequences derive from the up-stream of BSJ up to 210 bp. If type = “ie_down” the Intron or Exon sequences derive from the down-stream of BSJ up to 210 bp.

2. RNA Binding Proteins Analysis

RBP on full sequence

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
NXF1 1 286 0.004357298 0.0004159215 3.389051 AACCUG AACCUG
RBM8A 1 611 0.004357298 0.0008869128 2.296570 UGCGCC ACGCGC,AUGCGC,CGCGCC,CGCGCG,CGCGCU,GCGCGC,GUGCGC,UGCGCC,UGCGCG,UGCGCU
SRSF11 1 688 0.004357298 0.0009985015 2.125597 AAGAAG AAGAAG
LIN28A 9 4315 0.021786492 0.0062547643 1.800407 AGGAGA,AGGAGU,GGAGAA,GGAGAU,GGAGGA,GGAGUA,UGGAGG AGGAGA,AGGAGU,CGGAGA,CGGAGG,CGGAGU,GGAGAA,GGAGAU,GGAGGA,GGAGGG,GGAGUA,UGGAGA,UGGAGG,UGGAGU
IFIH1 1 904 0.004357298 0.0013115296 1.732184 GGCCCU CCGCGG,CGCGGA,GCCGCG,GCGGAU,GGCCCU,GGCCGC,GGGCCG
RBM24 4 2357 0.010893246 0.0034172229 1.672538 AGAGUG,GAGUGA,UGAGUG AGAGUG,AGUGUG,GAGUGA,GAGUGG,GAGUGU,GUGUGA,GUGUGG,GUGUGU,UGAGUG,UGUGUG
CELF2 3 1886 0.008714597 0.0027346479 1.672079 GUAUGU,UAUGUG AUGUGU,GUAUGU,GUCUGU,GUGUGU,GUUGUU,UAUGUG,UAUGUU,UGUGUG,UGUUGU,UUGUGU
HNRNPM 1 999 0.004357298 0.0014492040 1.588173 GAAGGA AAGGAA,GAAGGA,GGGGGG
ZC3H10 1 1053 0.004357298 0.0015274610 1.512298 CAGCGC CAGCGA,CAGCGC,CCAGCG,CGAGCG,GAGCGA,GAGCGC,GCAGCG,GGAGCG
MBNL1 24 13372 0.054466231 0.0193802045 1.490778 AUGCCA,AUGCUU,CCCGCU,CCGCUG,CCUGCU,CGCUGC,CGCUGU,CUGCCA,CUGCCC,CUGCUG,CUUGCU,GCGCUG,GCUGCG,GCUGCU,GCUUGC,GUGCUG,UGCUGU,UUGCCA,UUGCUG,UUGUGC ACGCUA,ACGCUC,ACGCUG,ACGCUU,AUGCCA,AUGCCC,AUGCCG,AUGCUC,AUGCUU,CCCGCU,CCGCUA,CCGCUC,CCGCUG,CCGCUU,CCUGCU,CGCUGC,CGCUGU,CGCUUC,CGCUUG,CGCUUU,CUCGCU,CUGCCA,CUGCCC,CUGCCG,CUGCCU,CUGCGG,CUGCUA,CUGCUC,CUGCUG,CUGCUU,CUUGCU,CUUGUG,GCGCUC,GCGCUG,GCGCUU,GCUGCG,GCUGCU,GCUUGC,GCUUGU,GCUUUU,GGCUUU,GUCUCG,GUGCUA,GUGCUC,GUGCUG,GUGCUU,UCCGCU,UCGCUA,UCGCUC,UCGCUG,UCGCUU,UCUCGC,UCUGCU,UGCGGC,UGCUGC,UGCUGU,UGCUUC,UGCUUU,UGUCUC,UUCGCU,UUGCCA,UUGCCC,UUGCCG,UUGCCU,UUGCUA,UUGCUC,UUGCUG,UUGCUU,UUGUGC,UUUGCU
CELF1 3 2391 0.008714597 0.0034664959 1.329956 CUGUCU,UGUCUG CUGUCU,GUGUGU,GUGUUG,GUUGUG,GUUUGU,UGUCUG,UGUGUG,UGUGUU,UGUUGU,UGUUUG,UUGUGU
SSB 1 1260 0.004357298 0.0018274462 1.253605 UGCUGU CUGUUU,GCUGUU,UGCUGU,UGUUUU
ACO1 1 1283 0.004357298 0.0018607779 1.227528 CAGUGC CAGUGA,CAGUGC,CAGUGG,CAGUGU
TARDBP 3 2654 0.008714597 0.0038476365 1.179461 GAAUGG,UGAAUG,UUGUGC GAAUGA,GAAUGG,GAAUGU,GUGAAU,GUGUGU,GUUGUG,GUUGUU,GUUUUG,UGAAUG,UGUGUG,UUGUGC,UUGUUC,UUUUGC
MSI1 3 2770 0.008714597 0.0040157442 1.117767 AGGAGG AGGAAG,AGGAGG,AGGUAG,AGGUGG,AGUAAG,AGUAGG,AGUUAG,AGUUGG,UAGGAA,UAGGAG,UAGGUA,UAGGUG,UAGUAA,UAGUAG,UAGUUA,UAGUUG
RBMX 6 4925 0.015250545 0.0071387787 1.095112 AAGAAG,AGAAGG,GAAGGA,GGAAGG,UAACAA AAGAAG,AAGGAA,AAGUAA,AAGUGU,ACCAAA,AGAAGG,AGGAAG,AGUAAC,AGUGUU,AUCAAA,AUCCCA,AUCCCC,GAAGGA,GGAAGG,GUAACA,UAACAA,UAAGAC,UCAAAA
HNRNPA3 2 2140 0.006535948 0.0031027457 1.074851 AAGGAG,GGAGCC AAGGAG,AGGAGC,CAAGGA,CCAAGG,GCCAAG,GGAGCC
ESRP2 2 2150 0.006535948 0.0031172377 1.068128 GGGAAG,UGGGGA GGGAAA,GGGAAG,GGGAAU,GGGGAA,GGGGAG,GGGGAU,UGGGAA,UGGGGA
YBX2 1 1480 0.004357298 0.0021462711 1.021602 ACAUCU AACAAC,AACAUC,ACAACA,ACAACG,ACAACU,ACAUCA,ACAUCG,ACAUCU
SRSF9 26 20254 0.058823529 0.0293536261 1.002855 AGGAGA,GAAGCC,GAAGGA,GAAGGC,GGAAGG,GGACCA,GGAGAA,GGAGCC,GGAGGA,GGAGGC,UGAAGC,UGAAGG,UGACCA,UGACCG,UGAUGG,UGGAGC,UGGAGG AGGAAA,AGGAAC,AGGACA,AGGACC,AGGAGA,AGGAGC,AUGAAA,AUGAAC,AUGACA,AUGACC,AUGAGA,AUGAGC,CUGGAU,GAAGCA,GAAGCC,GAAGGA,GAAGGC,GAUGCA,GAUGCC,GAUGGA,GAUGGC,GGAAAA,GGAAAG,GGAACA,GGAACG,GGAAGC,GGAAGG,GGACAA,GGACAG,GGACCA,GGACCG,GGAGAA,GGAGAG,GGAGCA,GGAGCC,GGAGCG,GGAGGA,GGAGGC,GGAUGC,GGAUGG,GGGAGC,GGGAGG,GGGUGC,GGGUGG,GGUGCA,GGUGCC,GGUGGA,GGUGGC,UGAAAA,UGAAAG,UGAACA,UGAACG,UGAAGC,UGAAGG,UGACAA,UGACAG,UGACCA,UGACCG,UGAGAA,UGAGAG,UGAGCA,UGAGCG,UGAUGC,UGAUGG,UGGAGC,UGGAGG,UGGAUU,UGGUGC,UGGUGG

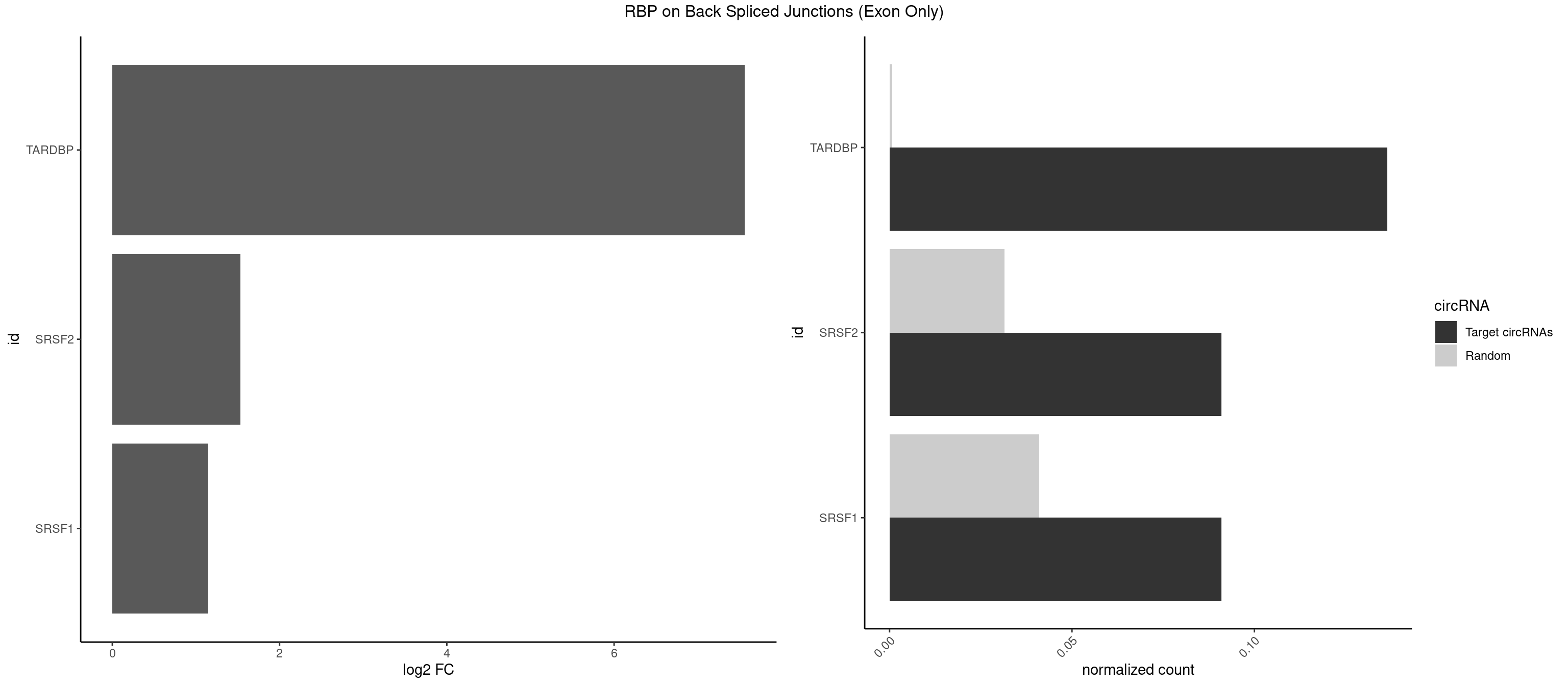

RBP on BSJ (Exon Only)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
TARDBP 2 10 0.13636364 0.0007204611 7.564323 GAAUGG,UGAAUG GAAUGA,GAAUGU,GUUUUG,UGUGUG,UUGUGC,UUGUUC
SRSF2 1 479 0.09090909 0.0314383023 1.531901 UGAAUG AAAAGA,AAAGAG,AAGAGA,AAGCAG,AAGCUG,AAGGCG,AAUACC,AAUGCU,ACCACC,ACCACU,ACCAGC,ACCAGU,ACCCCC,ACCCCU,ACUCAA,AGAAGA,AGAAGC,AGAAUA,AGAAUG,AGAGAA,AGAGAU,AGAGGA,AGAGGU,AGAGUA,AGAGUG,AGAGUU,AGAUAA,AGAUCC,AGAUGC,AGCACU,AGCAGA,AGCAGU,AGCCGA,AGCCUC,AGCGGA,AGCUGU,AGGAAG,AGGAGA,AGGAGC,AGGAGG,AGGAGU,AGGCAG,AGGCGU,AGGCUG,AGGGUA,AGUAGG,AGUAGU,AGUGAC,AGUGUU,AUGAUG,AUGCUG,AUGGAG,AUUAGU,AUUCCU,AUUGAU,CAGAGA,CAGAGG,CAGAGU,CAGUAG,CAGUGG,CCACCA,CCAGAU,CCAGCC,CCAGCU,CCAGGG,CCAGGU,CCAGUC,CCAGUG,CCAGUU,CCCGCU,CCCGUG,CCGCUA,CCGGUG,CCUCCG,CCUGCG,CCUGCU,CCUGUU,CGAACG,CGAGGA,CGAGUA,CGAGUG,CGAGUU,CGCAGU,CGCUGC,CGUAAG,CGUGCG,CUACCG,CUAGAA,CUCAAG,CUCCAA,CUCCUG,CUCGUG,CUGAUG,GAAAGG,GAAGAA,GAAGCG,GAAGGC,GAAUAC,GAAUCC,GACCCC,GACGGA,GACUCA,GACUGU,GAGAAG,GAGAAU,GAGAGA,GAGAGU,GAGAUA,GAGAUG,GAGCAC,GAGCAG,GAGCUG,GAGGAA,GAGGAC,GAGGAG,GAGUGA,GAUCCC,GAUCCG,GAUGAU,GAUGCU,GAUGGA,GAUUAG,GAUUGA,GCACUG,GCAGAG,GCAGGG,GCAGGU,GCAGUA,GCAGUG,GCCACC,GCCACU,GCCCAC,GCCGAG,GCCGCC,GCCGUU,GCCUCA,GCCUCC,GCGUGU,GCUGUU,GGAACC,GGAAGG,GGAAUG,GGACCG,GGACGC,GGAGAA,GGAGAG,GGAGAU,GGAGCG,GGAGGA,GGAGUG,GGAGUU,GGAUCC,GGAUGG,GGCAGU,GGCCAC,GGCCGC,GGCCUC,GGCGUG,GGCUCC,GGCUCG,GGCUGA,GGCUGC,GGGAAU,GGGAGC,GGGCAG,GGGUAA,GGGUAC,GGGUAG,GGGUAU,GGGUGA,GGUACG,GGUAGG,GGUCAG,GGUUAC,GGUUCC,GGUUGG,GUAAGC,GUAGGC,GUCAGU,GUCGCC,GUCUAA,GUGCAG,GUUAAU,GUUCCC,GUUCCU,GUUCGA,GUUCUG,GUUGGC,GUUUCG,UAAGCU,UACGAG,UACGUG,UAGGCU,UAUGCU,UCACCG,UCAGUG,UCCAGA,UCCAGC,UCCAGG,UCCAGU,UCCUGC,UCCUGU,UCGAGU,UCGUGC,UGAGCU,UGAUCG,UGAUGG,UGCAGA,UGCAGU,UGCCGU,UGCGGU,UGCUGU,UGGAGA,UGGAGG,UGGAGU,UGGCAG,UGUUCC,UUAAUG,UUACUG,UUAGUG,UUCCAG,UUCCCG,UUCCUA,UUCCUG,UUCGAG,UUGUUG
SRSF1 1 625 0.09090909 0.0410007860 1.148773 CCCUGA AAAAGA,AAAGAA,AAAGAC,AAAGAG,AACAGC,AAGAAC,AAGACC,AAGAGA,AAGAGC,AAGAGG,AAGGAC,AAGGCG,AAGGUG,AAUGAC,AAUUUC,ACAAGG,ACAGAG,ACAGCA,ACAGCG,ACAGGA,ACAGGG,ACAGGU,ACAGUG,ACCCGA,ACCGGA,ACGAAU,ACGGAA,ACUGAG,ACUGGA,AGAAGA,AGAAGG,AGACAA,AGACAG,AGACGU,AGAGAA,AGAGAC,AGAGCA,AGAGGA,AGAGGG,AGAGGU,AGAUGG,AGCAGG,AGCCGA,AGCGGA,AGGAAA,AGGAAC,AGGAAG,AGGACA,AGGACC,AGGACG,AGGACU,AGGAGA,AGGAGC,AGGAGG,AGGUAA,AUGAAC,AUGAAG,AUGACA,AUGACU,AUGGAC,AUGGAG,CAAGGA,CAAUGG,CACAGA,CACAGC,CACAGG,CACAGU,CACCCA,CACCCG,CACCGG,CACGCA,CACGGA,CACUGG,CAGAAC,CAGACA,CAGACG,CAGAGA,CAGAGC,CAGAGG,CAGCCG,CAGUCG,CAUGGU,CCAACC,CCAAGG,CCACCA,CCACCC,CCACGG,CCAGCA,CCAGCC,CCAGCG,CCAGGA,CCAGGG,CCCACC,CCCAGC,CCCAGG,CCCCGC,CCCGGG,CCCGUU,CCCUCC,CCCUCG,CCGAGG,CCGCGA,CCGCUA,CCGGAC,CCGGAG,CCGGGA,CCGUCC,CCGUGC,CCGUGG,CCGUUU,CCUAGG,CCUCCG,CCUCGA,CCUGCG,CCUGGA,CCUGGG,CGAACG,CGAAGC,CGAGGA,CGAGGC,CGAGGG,CGAUGG,CGCAGC,CGCCGC,CGCUAU,CGCUGC,CGGAAU,CGGACA,CGGAGC,CGGAGG,CGGCGG,CGGGCA,CGGUGC,CGGUGG,CGUGCG,CGUGGA,CGUGGG,CUCAGG,CUCGUG,CUGAAC,CUGAGU,GAAAGA,GAAAGG,GAACAG,GAAGAA,GAAGAG,GAAGAU,GAAGCA,GAAGCC,GAAGCU,GAAGGA,GAAGGC,GAAGGU,GAAUGA,GACAGA,GACAGG,GACCCA,GACGAA,GACGAC,GACGGA,GACUGA,GAGAAC,GAGAAG,GAGACA,GAGACG,GAGCAG,GAGGAA,GAGGAC,GAGGAG,GAGGAU,GAGGCA,GAGGGA,GAGGGC,GAGGGG,GAGGUA,GAUGAA,GAUGAC,GAUGAU,GAUGCA,GAUGCC,GAUGCU,GAUGGA,GAUGGC,GCACGG,GCAGCA,GCAGCG,GCAGGA,GCAGGC,GCAGGG,GCAGGU,GCCCAC,GCCCGG,GCCCGU,GCGCAA,GCGCCA,GCGCCC,GCGCGG,GCGGAC,GCGGCG,GCGGUU,GCUGGG,GGAAAG,GGAACA,GGAAGA,GGAAGG,GGAAUG,GGACAA,GGACAG,GGACCA,GGACCG,GGACGA,GGAGAA,GGAGAC,GGAGAU,GGAGCA,GGAGCG,GGAGCU,GGAGGA,GGAGGC,GGAGGG,GGAGGU,GGAUAU,GGAUGA,GGAUUC,GGCACA,GGCAGA,GGCCGA,GGCGCA,GGGACG,GGGCCG,GGGGAA,GGGGAG,GGGGCA,GGGGCG,GGGGGA,GGGUAC,GGUCCA,GGUCCG,GGUGAA,GGUGCA,GGUGCC,GGUGCG,GGUGCU,GGUGGA,GGUGGC,GGUGGG,GGUGGU,GUAGGA,GUGACA,UAGACA,UAGGAC,UCAAGA,UCAGGU,UCGGGC,UGAACA,UGAAGA,UGAAGC,UGAAGG,UGACAG,UGACGA,UGACUG,UGAGUU,UGAUGA,UGAUGG,UGGACA,UGGAGA,UGGAGC,UGGAGG,UGGUGC,UGUAGG,UUCAAG

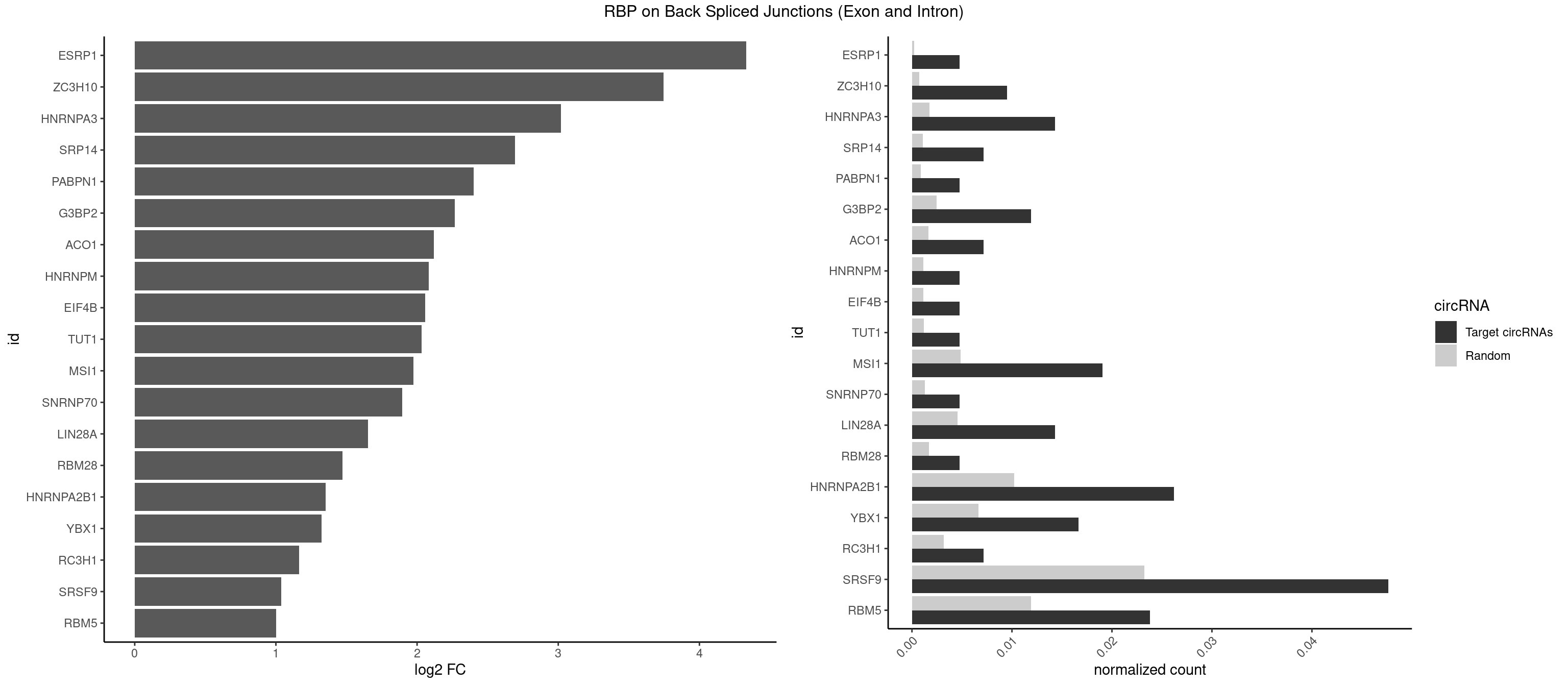

RBP on BSJ (Exon and Intron)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
ESRP1 1 46 0.004761905 0.0002367997 4.329800 AGGGAU AGGGAU
ZC3H10 3 140 0.009523810 0.0007103990 3.744837 CAGCGA,CCAGCG,CGAGCG CAGCGA,CAGCGC,CCAGCG,CGAGCG,GAGCGA,GAGCGC,GCAGCG,GGAGCG
HNRNPA3 5 349 0.014285714 0.0017634019 3.018140 AAGGAG,CAAGGA,CCAAGG,GCCAAG AAGGAG,AGGAGC,CAAGGA,CCAAGG,GCCAAG,GGAGCC
SRP14 2 218 0.007142857 0.0011033857 2.694564 CCUGUA,GCCUGU CCUGUA,CGCCUG,CUGUAG,GCCUGU
PABPN1 1 178 0.004761905 0.0009018541 2.400573 AGAAGA AAAAGA,AGAAGA
G3BP2 4 490 0.011904762 0.0024738009 2.266737 AGGAUA,GGAUAG,GGAUGG AGGAUA,AGGAUG,AGGAUU,GGAUAA,GGAUAG,GGAUGA,GGAUGG,GGAUUA,GGAUUG
ACO1 2 325 0.007142857 0.0016424829 2.120623 CAGUGA,CAGUGG CAGUGA,CAGUGC,CAGUGG,CAGUGU
HNRNPM 1 222 0.004761905 0.0011235389 2.083489 AAGGAA AAGGAA,GAAGGA,GGGGGG
EIF4B 1 226 0.004761905 0.0011436921 2.057840 CUCGGA CUCGGA,CUUGGA,GUCGGA,GUUGGA,UCGGAA,UCGGAC,UUGGAA,UUGGAC
TUT1 1 230 0.004761905 0.0011638452 2.032640 AGAUAC AAAUAC,AAUACU,AGAUAC,CAAUAC,CGAUAC,GAUACU
MSI1 7 961 0.019047619 0.0048468360 1.974496 AGGAGG,AGGUGG,UAGGAG,UAGGUG AGGAAG,AGGAGG,AGGUAG,AGGUGG,AGUAAG,AGUAGG,AGUUAG,AGUUGG,UAGGAA,UAGGAG,UAGGUA,UAGGUG,UAGUAA,UAGUAG,UAGUUA,UAGUUG
SNRNP70 1 253 0.004761905 0.0012797259 1.895704 AUCAAG AAUCAA,AUCAAG,AUUCAA,GAUCAA,GUUCAA,UUCAAG
LIN28A 5 900 0.014285714 0.0045395002 1.653968 CGGAGA,CGGAGG,GGAGAA,GGAGGG,UGGAGA AGGAGA,AGGAGU,CGGAGA,CGGAGG,CGGAGU,GGAGAA,GGAGAU,GGAGGA,GGAGGG,GGAGUA,UGGAGA,UGGAGG,UGGAGU
RBM28 1 340 0.004761905 0.0017180572 1.470761 UGUAGG AGUAGA,AGUAGG,AGUAGU,GAGUAG,GUGUAG,UGUAGA,UGUAGG,UGUAGU
HNRNPA2B1 10 2033 0.026190476 0.0102478839 1.353716 AAGGAA,AAGGAG,AGGGGC,CAAGGA,CAAGGG,CCAAGG,GAAGCC,GCCAAG,GGGGCC AAGAAG,AAGGAA,AAGGAG,AAGGGG,AAUUUA,ACUAGA,AGAAGC,AGACUA,AGAUAU,AGGAAC,AGGAGC,AGGGGC,AGUAGG,AUAGCA,AUAGGG,AUUUAA,CAAGAA,CAAGGA,CAAGGG,CCAAGA,CCAAGG,CGAAGG,CUAGAC,GAAGCC,GAAGGA,GACUAG,GCCAAG,GCGAAG,GGAACC,GGAGCC,GGGGCC,GUAGGG,UAGACA,UAGACU,UAGGGA,UAGGGU,UUAGGG,UUUAUA
YBX1 6 1321 0.016666667 0.0066606207 1.323237 AACCAC,AUCAUC,CAUCAU,CCCUGC,GAUCUG AACAUC,AACCAC,ACACCA,ACAUCA,ACAUCG,ACAUCU,ACCACA,ACCACC,AUCAUC,CAACCA,CACACC,CACCAC,CAGCAA,CAUCAU,CAUCGC,CAUCUG,CCACAA,CCACAC,CCACCA,CCAGCA,CCCUGC,CCUGCG,CUGCGG,GAUCUG,GCCUGC,GGUCUG,GUCUGC,UCCAGC,UGCGGU
RC3H1 2 631 0.007142857 0.0031841999 1.165570 CCCUUC,CCUUCU CCCUUC,CCUUCU,CUUCUG,UCCCUU,UCUGUG,UUCUGU
SRSF9 19 4608 0.047619048 0.0232214833 1.036079 AGGAAA,GAAGCC,GAAGGC,GGAAAG,GGAGAA,GGAGAG,GGAGGC,GGAUGG,GGGUGC,GGGUGG,GGUGCC,GGUGGA,UGAAGC,UGAAGG,UGACCA,UGGUGG AGGAAA,AGGAAC,AGGACA,AGGACC,AGGAGA,AGGAGC,AUGAAA,AUGAAC,AUGACA,AUGACC,AUGAGA,AUGAGC,CUGGAU,GAAGCA,GAAGCC,GAAGGA,GAAGGC,GAUGCA,GAUGCC,GAUGGA,GAUGGC,GGAAAA,GGAAAG,GGAACA,GGAACG,GGAAGC,GGAAGG,GGACAA,GGACAG,GGACCA,GGACCG,GGAGAA,GGAGAG,GGAGCA,GGAGCC,GGAGCG,GGAGGA,GGAGGC,GGAUGC,GGAUGG,GGGAGC,GGGAGG,GGGUGC,GGGUGG,GGUGCA,GGUGCC,GGUGGA,GGUGGC,UGAAAA,UGAAAG,UGAACA,UGAACG,UGAAGC,UGAAGG,UGACAA,UGACAG,UGACCA,UGACCG,UGAGAA,UGAGAG,UGAGCA,UGAGCG,UGAUGC,UGAUGG,UGGAGC,UGGAGG,UGGAUU,UGGUGC,UGGUGG
RBM5 9 2359 0.023809524 0.0118903668 1.001746 AAGGAA,AAGGAG,AGGGUG,CAAGGA,CAAGGG,CUCUUC,CUUCUC,GAGGGA AAAAAA,AAGGAA,AAGGAG,AAGGGG,AAGGUA,AAGGUG,AGGGAA,AGGGAG,AGGGUA,AGGGUG,AGGUAA,CAAGGA,CAAGGG,CCCCCC,CUCUUC,CUUCUC,GAAGGA,GAAGGG,GAAGGU,GAGGGA,GAGGGU,GGGGGG,GGUGGU,UCUUCU,UUCUCU

Help

  • Note:
    • foreground: number of motifs found in the foreground target sequences (e.g. predicted circRNAs).
    • background: number of motifs found in the background target sequences (e.g. randomly generated circRNAs).
    • foregroundNorm: number of motifs found in the foreground target sequences (+1) divided by the number (or length) of sequences analyzed.
    • backgroundNorm: number of motifs found in background target sequences (+1) divided by the number (or length) of sequences analyzed.
    • log2FC: log2 fold change calculated in this way (foregroundNorm)/(backgroundNorm).
    • motifF: motifs of the corresponding RBP found in the foreground sequences.
    • motifB: motifs of the corresponding RBP found in the background sequences.
