ENSG00000197157:+:7:127887901:127888012

1. Sequences

id gene transcript strand chrom startGR endGR length seq type
ENSG00000197157:+:7:127887901:127888012 ENSG00000197157 ENST00000354725 + 7 127887902 127888012 111 AAACAUUGCUGAGGCUCUUGUCAGCAAAGGUCUAGCCACAGUGAUCAGAUACCGGCAGGAUGAUGACCAGAGAUCAUCACACUACGAUGAACUGCUUGCUGCAGAGGCCAGAAACAUUGCUGAGGCUCUUGUCAGCAAAGGUCUAGCCACAGUGAUCAGAU circ
ENSG00000197157:+:7:127887901:127888012 ENSG00000197157 ENST00000354725 + 7 127887902 127888012 22 GCAGAGGCCAGAAACAUUGCUG bsj
ENSG00000197157:+:7:127887901:127888012 ENSG00000197157 ENST00000354725 + 7 127887702 127887911 210 AAAAAUGCUGAGCUAGGGAACUUUGUUAUUUAACCUUUUAUUUGGAUUUCUAGCUUAGCAACUCAUAGGUCUUGAAACCUUGGCUUCUCUCUCCCUCUGCCAGAAUGCGUUAAGACCUCCAGGUGCUAACUGUUAUUAUUUCUGUUGACUGAGCCCCAUAUGCACUUCUAGUGCUCACUGACCUAUCUUUUCUGUUGCAGAAACAUUGCU ie_up
ENSG00000197157:+:7:127887901:127888012 ENSG00000197157 ENST00000354725 + 7 127888003 127888212 210 CAGAGGCCAGGUAAGACCAAACAUUACUAAACACAUGGGGAACCCACACCCUCACUUUUUUCUUUCCCAGUUUUGUGCCUAUACCUGAGCAGAAUGUGUUGGAAAAUAAUAUGCUGAGAAAGCAUGUAUUAUUAUUCUAGAUUUUCCCCAUGAAAAGAAGGACACACUUUGAACUUGCUGUCUAAUUUUGUUUAAGUGCACUUGGUCUUC ie_down
  • Note:
    • id: unique identifier.
    • gene: represents the gene from which the circRNA arises.
    • transcript: transcript whose exon coordinates overlap with the detected back-spliced junction coordinate and used in the downstream analysis.
    • strand: is the strand from which the gene is transcribed.
    • chrom: is the chromosome from which the circRNA is derived.
    • startGR: is the 5’ coordinate of the genomic range from which the sequence are extracted.
    • endGR: is the 3’ coordinate of the genomic range from which the sequence are extracted.
    • length: length of the extracted sequences.
    • seq: sequence used in the downstream analysis.
    • type: type of sequences retrieved. If type = “circ” the sequences derive from the internal circRNA sequences. If type = “bsj” the sequences derive from the back spliced junctions (BSJ). If type = “ie_up” the Intron or Exon sequences derive from the up-stream of BSJ up to 210 bp. If type = “ie_down” the Intron or Exon sequences derive from the down-stream of BSJ up to 210 bp.

2. RNA Binding Proteins Analysis

RBP on full sequence

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
RBM42 1 407 0.01801802 0.0005912752 4.929467 ACUACG AACUAA,AACUAC,ACUAAG,ACUACG
TUT1 1 678 0.01801802 0.0009840095 4.194624 AGAUAC AAAUAC,AAUACU,AGAUAC,CAAUAC,CGAUAC,GAUACU
A1CF 2 1642 0.02702703 0.0023810421 3.504738 GAUCAG,UGAUCA AGUAUA,AUAAUU,AUCAGU,CAGUAU,GAUCAG,UAAUUA,UAAUUG,UCAGUA,UGAUCA,UUAAUU
G3BP2 2 1644 0.02702703 0.0023839405 3.502983 AGGAUG,GGAUGA AGGAUA,AGGAUG,AGGAUU,GGAUAA,GGAUAG,GGAUGA,GGAUGG,GGAUUA,GGAUUG
ACO1 1 1283 0.01801802 0.0018607779 3.275463 CAGUGA CAGUGA,CAGUGC,CAGUGG,CAGUGU
RBM46 4 4554 0.04504505 0.0066011240 2.770585 AUGAUG,GAUCAU,GAUGAA,GAUGAU AAUCAA,AAUCAU,AAUGAA,AAUGAU,AUCAAA,AUCAAG,AUCAAU,AUCAUA,AUCAUG,AUCAUU,AUGAAA,AUGAAG,AUGAAU,AUGAUA,AUGAUG,AUGAUU,GAUCAA,GAUCAU,GAUGAA,GAUGAU
QKI 2 2805 0.02702703 0.0040664663 2.732555 ACACUA,CACACU AAUCAU,ACACAC,ACACUA,ACUAAC,ACUAAU,ACUCAU,ACUUAU,AUCAUA,AUCUAA,AUCUAC,AUUAAC,CACACU,CACUAA,CUAACA,CUAACC,CUAACG,CUAAUC,CUACUC,CUCAUA,UAACCU,UAAUCA,UACUCA,UCAUAU,UCUAAU,UCUACU
ZRANB2 2 3173 0.02702703 0.0045997733 2.554768 AAAGGU,AGGUCU AAAGGU,AGGGAA,AGGUAA,AGGUAC,AGGUAG,AGGUAU,AGGUCU,AGGUUA,AGGUUU,CGGUAA,CGGUAG,CGGUAU,CGGUCU,GAGGUU,GGGUAA,GGGUGA,GGUAAA,GGUGGU,GUAAAG,GUGGUG,UAAAGG,UGGUAA,UGGUGG
NOVA2 2 4013 0.02702703 0.0058171047 2.216030 AGAUCA,AUCAUC AACACC,ACCACC,AGACAU,AGAUCA,AGCACC,AGGCAU,AGUCAU,AUCAAC,AUCACC,AUCAUC,CCUAGA,CUAGAU,GAGACA,GAGGCA,GAGUCA,GAUCAC,GGGGGG,UAGAUC,UUUUUU
SF1 2 4931 0.02702703 0.0071474739 1.918897 UGCUGA,UGCUGC ACAGAC,ACAGUC,ACCGAC,ACGAAC,ACUAAC,ACUAAG,ACUAAU,ACUAGC,ACUGAC,ACUUAU,AGUAAC,AGUAAG,AUACUA,AUUAAC,CACAGA,CACCGA,CACUGA,CAGUCA,CGCUGA,CUAACA,GACUAA,GCUAAC,GCUGAC,GCUGCC,UAACAA,UACGAA,UACUAA,UACUAG,UACUGA,UAGUAA,UAUACU,UGCUAA,UGCUGA,UGCUGC
SRSF3 9 16536 0.09009009 0.0239654858 1.910410 ACUACG,AGAGAU,AUCAUC,CACUAC,CAGAGA,CAUCAC,CUACGA,UACGAU,UCAUCA AACGAC,AACGAU,AACUUU,ACAUCA,ACAUCG,ACAUUC,ACCACC,ACGACG,ACGACU,ACGAUC,ACGAUU,ACUACA,ACUACG,ACUUCA,ACUUCG,ACUUCU,ACUUUA,AGAGAU,AUCAAC,AUCAUC,AUCGAC,AUCGAU,AUCGCU,AUCGUU,AUCUUC,AUUCAU,CAACGA,CACAAC,CACAUC,CACCAC,CACUAC,CACUUC,CAGAGA,CAUCAA,CAUCAC,CAUCAU,CAUCGA,CAUCGC,CAUCGU,CAUUCA,CCACCA,CCUCGU,CCUCUU,CGAUCG,CGCUUC,CUACAA,CUACAC,CUACAG,CUACGA,CUCCAA,CUCGUC,CUCUUC,CUUCAA,CUUCAC,CUUCAG,CUUCAU,CUUCGA,CUUCUU,CUUUAU,GACUUC,GAGAUU,GAUCAA,GAUCGA,GCUUCA,GUCAAC,UACAAA,UACAAC,UACAAU,UACAGC,UACAUC,UACGAC,UACGAU,UACUUC,UAUCAA,UCAACG,UCACAA,UCAGAG,UCAUCA,UCAUCC,UCAUCG,UCAUCU,UCGACA,UCGACU,UCGAUA,UCGAUC,UCGAUU,UCGCUU,UCGUCC,UCGUUC,UCUCCA,UCUUCA,UCUUCC,UCUUCG,UGUCAA,UUACGA,UUCAAC,UUCAUC,UUCGAC,UUCGAU,UUCUCC,UUCUUC
SRSF7 7 14481 0.07207207 0.0209873716 1.779919 ACUACG,AGAGAU,AGAUCA,CAGAGA,CUACGA,GAGAUC,UACGAU AAAGGA,AAGAAG,AAGGAC,AAGGCG,AAUGAU,ACGAAU,ACGACG,ACGAGA,ACGAUA,ACGAUU,ACUACG,ACUAGA,AGAAGA,AGACGA,AGACUA,AGAGAA,AGAGAC,AGAGAG,AGAGAU,AGAGGA,AGAUCA,AGAUCU,AGGAAG,AGGACA,AGGCGA,AUAGAA,AUAGAC,AUUGAC,AUUGAU,CAGAGA,CCGAGA,CGAAUG,CGACGA,CGAGAC,CGAGAG,CGAGAU,CGAUAG,CGAUUG,CUACGA,CUAGAG,CUCUUC,CUGAGA,CUUCAC,GAAGAA,GAAGGC,GAAUGA,GACAAA,GACGAC,GACGAG,GACGAU,GACUAC,GAGACU,GAGAGA,GAGAUC,GAGGAA,GAUAGA,GAUUGA,GGAAGG,GGACAA,GGACGA,UACGAC,UACGAU,UAGAGA,UCAACA,UCGAGA,UCGAUU,UCUCCG,UCUUCA,UGAGAG,UGGACA
MBNL1 6 13372 0.06306306 0.0193802045 1.702211 CUGCUU,CUUGCU,GCUUGC,UGCUGC,UUGCUG ACGCUA,ACGCUC,ACGCUG,ACGCUU,AUGCCA,AUGCCC,AUGCCG,AUGCUC,AUGCUU,CCCGCU,CCGCUA,CCGCUC,CCGCUG,CCGCUU,CCUGCU,CGCUGC,CGCUGU,CGCUUC,CGCUUG,CGCUUU,CUCGCU,CUGCCA,CUGCCC,CUGCCG,CUGCCU,CUGCGG,CUGCUA,CUGCUC,CUGCUG,CUGCUU,CUUGCU,CUUGUG,GCGCUC,GCGCUG,GCGCUU,GCUGCG,GCUGCU,GCUUGC,GCUUGU,GCUUUU,GGCUUU,GUCUCG,GUGCUA,GUGCUC,GUGCUG,GUGCUU,UCCGCU,UCGCUA,UCGCUC,UCGCUG,UCGCUU,UCUCGC,UCUGCU,UGCGGC,UGCUGC,UGCUGU,UGCUUC,UGCUUU,UGUCUC,UUCGCU,UUGCCA,UUGCCC,UUGCCG,UUGCCU,UUGCUA,UUGCUC,UUGCUG,UUGCUU,UUGUGC,UUUGCU
NOVA1 1 3872 0.01801802 0.0056127669 1.682656 AUCAUC AACACC,ACCACC,AGCACC,AGUCAC,AUCAAC,AUCACC,AUCAUC,AUUCAU,CAGUCA,CAUUCA,CCCCCC,GGGGGG,UCAGUC,UCAUUC,UUCAUU,UUUUUU
YBX1 2 7119 0.02702703 0.0103183321 1.389193 AUCAUC,CAGCAA AACAUC,AACCAC,ACACCA,ACAUCA,ACAUCG,ACAUCU,ACCACA,ACCACC,AUCAUC,CAACCA,CACACC,CACCAC,CAGCAA,CAUCAU,CAUCGC,CAUCUG,CCACAA,CCACAC,CCACCA,CCAGCA,CCCUGC,CCUGCG,CUGCGG,GAUCUG,GCCUGC,GGUCUG,GUCUGC,UCCAGC,UGCGGU
YTHDC1 1 5576 0.01801802 0.0080822104 1.156619 UGCUGC GAAUAC,GAAUGC,GACUAC,GACUGC,GAGUAC,GAGUGC,GCAUAC,GCAUGC,GCCUAC,GCCUGC,GCGUAC,GCGUGC,GGAUAC,GGAUGC,GGCUAC,GGCUGC,GGGUAC,GGGUGC,UAAUAC,UAAUGC,UACUAC,UACUGC,UAGUAC,UAGUGC,UCAUAC,UCAUGC,UCCUAC,UCCUGC,UCGUAC,UCGUGC,UGAUAC,UGAUGC,UGCUAC,UGCUGC,UGGUAC,UGGUGC
G3BP1 4 14282 0.04504505 0.0206989801 1.121809 ACCGGC,CCACAG,CCGGCA,CGGCAG ACACGC,ACAGGC,ACCCAC,ACCCAU,ACCCCC,ACCCCU,ACCCGC,ACCGGC,ACGCAC,ACGCAG,ACGCCC,ACGCCG,AGGCAC,AGGCAG,AGGCCC,AGGCCG,AUACGC,AUAGGC,AUCCGC,AUCGGC,CACACG,CACAGG,CACCCG,CACCGG,CACGCA,CACGCC,CAGGCA,CAGGCC,CAUACG,CAUAGG,CAUCCG,CAUCGG,CCACAC,CCACAG,CCACCC,CCACCG,CCACGC,CCAGGC,CCAUAC,CCAUAG,CCAUCC,CCAUCG,CCCACA,CCCACC,CCCACG,CCCAGG,CCCAUA,CCCAUC,CCCCAC,CCCCAG,CCCCCA,CCCCCC,CCCCCG,CCCCGC,CCCCGG,CCCCUA,CCCCUC,CCCGCA,CCCGCC,CCCGGC,CCCUAC,CCCUAG,CCCUCC,CCCUCG,CCGCAC,CCGCAG,CCGCCC,CCGCCG,CCGGCA,CCGGCC,CCUACG,CCUAGG,CCUCCG,CCUCGG,CGGCAC,CGGCAG,CGGCCC,CGGCCG,CUACGC,CUAGGC,CUCCGC,CUCGGC,UACGCA,UACGCC,UAGGCA,UAGGCC,UCCGCA,UCCGCC,UCGGCA,UCGGCC
PUM1 1 5823 0.01801802 0.0084401638 1.094097 CCAGAA AAUAUU,AAUGUU,AAUUGU,ACAUAA,AGAAUU,AGAUAA,AUUGUA,CAGAAU,CCAGAA,CUUGUA,GAAUUG,GUAAAU,GUAAUA,GUACAU,GUAGAU,GUAUAU,GUCCAG,UAAAUA,UAAUAU,UAAUGU,UACAUA,UACAUC,UAGAUA,UAUAUA,UGUAAA,UGUAAU,UGUACA,UGUAGA,UGUAUA,UGUCCA,UUAAUG,UUGUAC,UUGUAG,UUUAAU
HNRNPDL 2 8759 0.02702703 0.0126950266 1.090139 ACCAGA,CUAGCC AACAGC,AACCUU,AACUAA,AAUACC,AAUUUA,ACACCA,ACAGCA,ACAUUA,ACCACG,ACCAGA,ACCUUG,ACUAAC,ACUAAG,ACUAGA,ACUAGC,ACUAGG,ACUGCA,ACUUUA,AGAUAU,AGUAGC,AGUAGG,AUACCA,AUCUGA,AUGCGC,AUUAGC,AUUAGG,CACCAG,CACGCA,CACUAG,CAUUAG,CCACGC,CCAGAC,CCUUGC,CCUUUA,CGAGCA,CUAACA,CUAACU,CUAAGC,CUAAGU,CUAGAG,CUAGAU,CUAGCA,CUAGCC,CUAGCG,CUAGCU,CUAGGA,CUAGGC,CUAGUA,CUUGCC,CUUUAA,CUUUAG,GAACUA,GACUAG,GAGUAG,GAUUAG,GCACUA,GCGAGC,GCUAGU,GGACUA,GGAGUA,GGAUUA,GUAGCC,GUAGCU,UAACAG,UAAGUA,UAGGCA,UCUGAC,UGCGCA,UGUCGC,UUAGCC,UUAGGC,UUUAGG
DAZAP1 1 5964 0.01801802 0.0086445016 1.059586 AGGAUG AAAAAA,AAUUUA,AGAUAU,AGGAAA,AGGAAG,AGGAUA,AGGAUG,AGGUAA,AGGUAG,AGGUUA,AGGUUG,AGUAAA,AGUAAG,AGUAGG,AGUAUA,AGUAUG,AGUUAA,AGUUAG,AGUUUA,AGUUUG,GGGGGG,GUAACG,UAGGAA,UAGGAU,UAGGUA,UAGGUU,UAGUAA,UAGUAU,UAGUUA,UAGUUU,UUUUUU

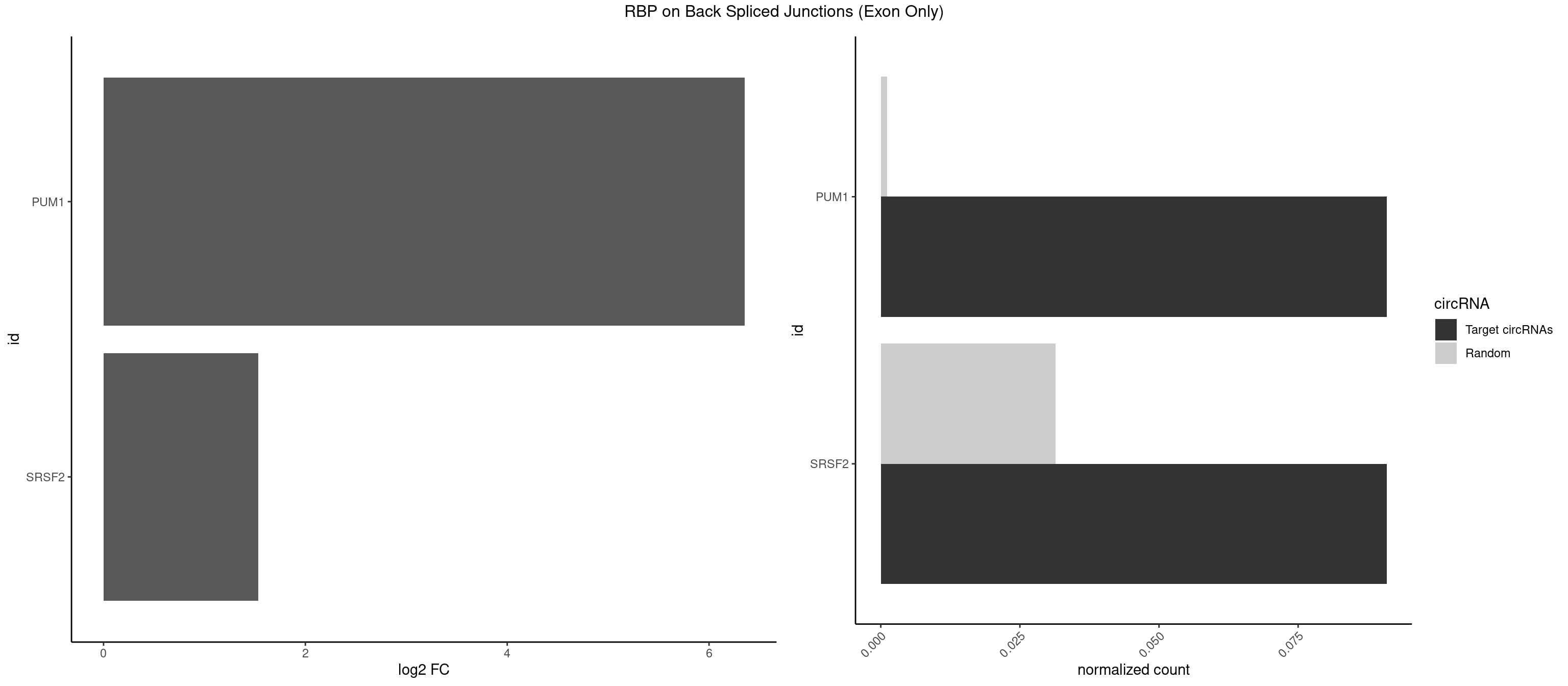

RBP on BSJ (Exon Only)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
PUM1 1 16 0.09090909 0.00111344 6.351329 CCAGAA AAUAUU,AAUGUU,AAUUGU,ACAUAA,AGAUAA,CAGAAU,GUAAAU,GUCCAG,UAAAUA,UAUAUA,UGUAAA,UGUAGA,UGUAUA,UUAAUG
SRSF2 1 479 0.09090909 0.03143830 1.531901 CCAGAA AAAAGA,AAAGAG,AAGAGA,AAGCAG,AAGCUG,AAGGCG,AAUACC,AAUGCU,ACCACC,ACCACU,ACCAGC,ACCAGU,ACCCCC,ACCCCU,ACUCAA,AGAAGA,AGAAGC,AGAAUA,AGAAUG,AGAGAA,AGAGAU,AGAGGA,AGAGGU,AGAGUA,AGAGUG,AGAGUU,AGAUAA,AGAUCC,AGAUGC,AGCACU,AGCAGA,AGCAGU,AGCCGA,AGCCUC,AGCGGA,AGCUGU,AGGAAG,AGGAGA,AGGAGC,AGGAGG,AGGAGU,AGGCAG,AGGCGU,AGGCUG,AGGGUA,AGUAGG,AGUAGU,AGUGAC,AGUGUU,AUGAUG,AUGCUG,AUGGAG,AUUAGU,AUUCCU,AUUGAU,CAGAGA,CAGAGG,CAGAGU,CAGUAG,CAGUGG,CCACCA,CCAGAU,CCAGCC,CCAGCU,CCAGGG,CCAGGU,CCAGUC,CCAGUG,CCAGUU,CCCGCU,CCCGUG,CCGCUA,CCGGUG,CCUCCG,CCUGCG,CCUGCU,CCUGUU,CGAACG,CGAGGA,CGAGUA,CGAGUG,CGAGUU,CGCAGU,CGCUGC,CGUAAG,CGUGCG,CUACCG,CUAGAA,CUCAAG,CUCCAA,CUCCUG,CUCGUG,CUGAUG,GAAAGG,GAAGAA,GAAGCG,GAAGGC,GAAUAC,GAAUCC,GACCCC,GACGGA,GACUCA,GACUGU,GAGAAG,GAGAAU,GAGAGA,GAGAGU,GAGAUA,GAGAUG,GAGCAC,GAGCAG,GAGCUG,GAGGAA,GAGGAC,GAGGAG,GAGUGA,GAUCCC,GAUCCG,GAUGAU,GAUGCU,GAUGGA,GAUUAG,GAUUGA,GCACUG,GCAGAG,GCAGGG,GCAGGU,GCAGUA,GCAGUG,GCCACC,GCCACU,GCCCAC,GCCGAG,GCCGCC,GCCGUU,GCCUCA,GCCUCC,GCGUGU,GCUGUU,GGAACC,GGAAGG,GGAAUG,GGACCG,GGACGC,GGAGAA,GGAGAG,GGAGAU,GGAGCG,GGAGGA,GGAGUG,GGAGUU,GGAUCC,GGAUGG,GGCAGU,GGCCAC,GGCCGC,GGCCUC,GGCGUG,GGCUCC,GGCUCG,GGCUGA,GGCUGC,GGGAAU,GGGAGC,GGGCAG,GGGUAA,GGGUAC,GGGUAG,GGGUAU,GGGUGA,GGUACG,GGUAGG,GGUCAG,GGUUAC,GGUUCC,GGUUGG,GUAAGC,GUAGGC,GUCAGU,GUCGCC,GUCUAA,GUGCAG,GUUAAU,GUUCCC,GUUCCU,GUUCGA,GUUCUG,GUUGGC,GUUUCG,UAAGCU,UACGAG,UACGUG,UAGGCU,UAUGCU,UCACCG,UCAGUG,UCCAGA,UCCAGC,UCCAGG,UCCAGU,UCCUGC,UCCUGU,UCGAGU,UCGUGC,UGAGCU,UGAUCG,UGAUGG,UGCAGA,UGCAGU,UGCCGU,UGCGGU,UGCUGU,UGGAGA,UGGAGG,UGGAGU,UGGCAG,UGUUCC,UUAAUG,UUACUG,UUAGUG,UUCCAG,UUCCCG,UUCCUA,UUCCUG,UUCGAG,UUGUUG

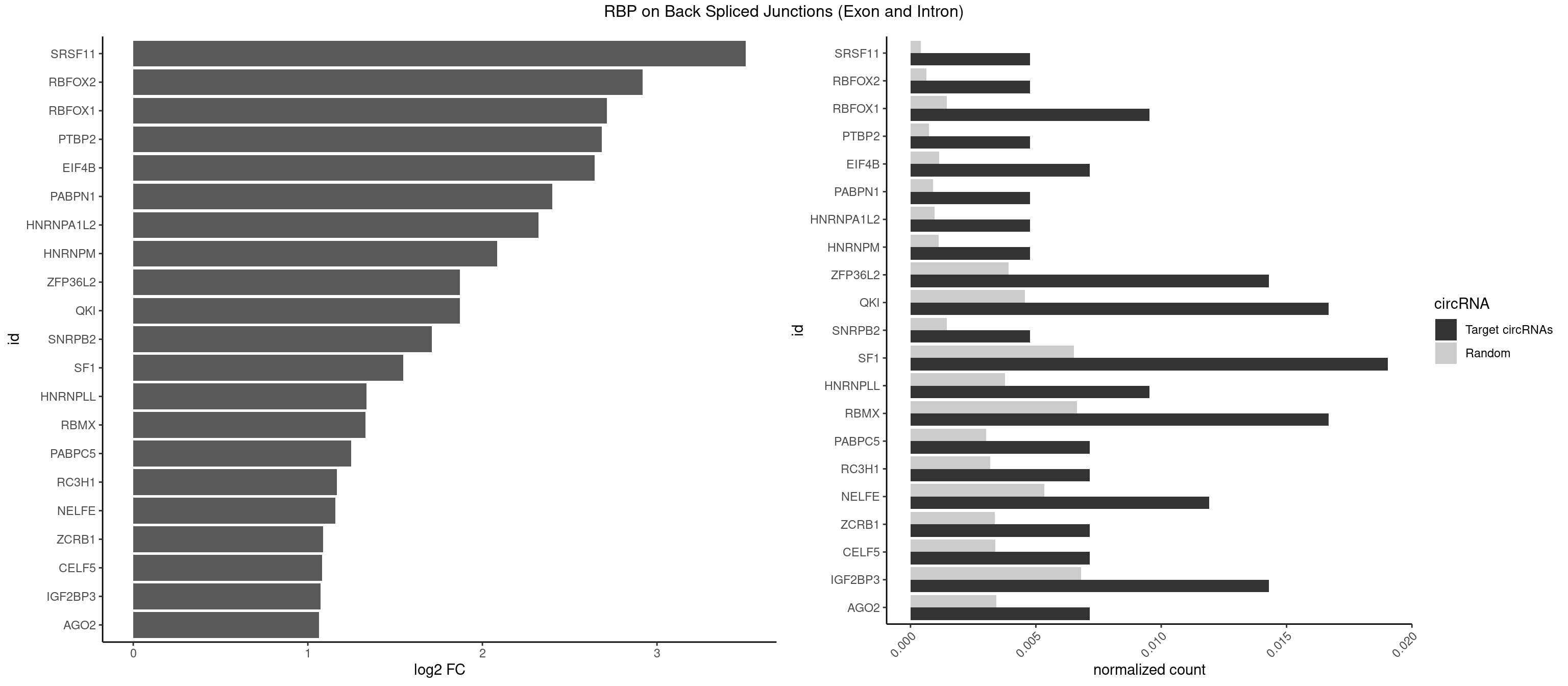

RBP on BSJ (Exon and Intron)

Plot

Spreadsheet

id foreground background foregroundNorm backgroundNorm log2FC motifF motifB
SRSF11 1 82 0.004761905 0.0004181782 3.509349 AAGAAG AAGAAG
RBFOX2 1 124 0.004761905 0.0006297864 2.918604 UGACUG UGACUG,UGCAUG
RBFOX1 3 287 0.009523810 0.0014510278 2.714464 AGCAUG,GCAUGU,UGACUG AGCAUG,GCAUGA,GCAUGC,GCAUGU,UGACUG,UGCAUG
PTBP2 1 146 0.004761905 0.0007406288 2.684716 CUCUCU CUCUCU
EIF4B 2 226 0.007142857 0.0011436921 2.642803 GUUGGA,UUGGAA CUCGGA,CUUGGA,GUCGGA,GUUGGA,UCGGAA,UCGGAC,UUGGAA,UUGGAC
PABPN1 1 178 0.004761905 0.0009018541 2.400573 AAAAGA AAAAGA,AGAAGA
HNRNPA1L2 1 188 0.004761905 0.0009522370 2.322146 UAGGGA AUAGGG,GUAGGG,UAGGGA,UAGGGU,UUAGGG
HNRNPM 1 222 0.004761905 0.0011235389 2.083489 GAAGGA AAGGAA,GAAGGA,GGGGGG
ZFP36L2 5 774 0.014285714 0.0039046755 1.871299 UAUUUA,UUAUUU,UUUAUU AUUUAU,UAUUUA,UUAUUU,UUUAUU
QKI 6 904 0.016666667 0.0045596534 1.869970 ACACAC,ACUCAU,CACACU,CUCAUA,UAACCU,UCUAAU AAUCAU,ACACAC,ACACUA,ACUAAC,ACUAAU,ACUCAU,ACUUAU,AUCAUA,AUCUAA,AUCUAC,AUUAAC,CACACU,CACUAA,CUAACA,CUAACC,CUAACG,CUAAUC,CUACUC,CUCAUA,UAACCU,UAAUCA,UACUCA,UCAUAU,UCUAAU,UCUACU
SNRPB2 1 288 0.004761905 0.0014560661 1.709463 UUGCAG AUUGCA,GUAUUG,UAUUGC,UGCAGU,UUGCAG
SF1 7 1294 0.019047619 0.0065245869 1.545652 ACUGAC,CACUGA,GCUAAC,UACUAA,UGCUAA,UGCUGA ACAGAC,ACAGUC,ACCGAC,ACGAAC,ACUAAC,ACUAAG,ACUAAU,ACUAGC,ACUGAC,ACUUAU,AGUAAC,AGUAAG,AUACUA,AUUAAC,CACAGA,CACCGA,CACUGA,CAGUCA,CGCUGA,CUAACA,GACUAA,GCUAAC,GCUGAC,GCUGCC,UAACAA,UACGAA,UACUAA,UACUAG,UACUGA,UAGUAA,UAUACU,UGCUAA,UGCUGA,UGCUGC
HNRNPLL 3 748 0.009523810 0.0037736800 1.335567 ACACAC,CAAACA,CACACC ACAAAC,ACACAC,ACACCA,ACAUAC,ACCACA,ACCGCA,ACGACA,ACUGCA,AGACGA,CAAACA,CACACA,CACACC,CACCAC,CACCGC,CACUGC,CAGACG,CAUACA,GACGAC,GCAAAC,GCACAC,GCAUAC
RBMX 6 1316 0.016666667 0.0066354293 1.328704 AAGAAG,ACCAAA,AGAAGG,GAAGGA,UAAGAC AAGAAG,AAGGAA,AAGUAA,AAGUGU,ACCAAA,AGAAGG,AGGAAG,AGUAAC,AGUGUU,AUCAAA,AUCCCA,AUCCCC,GAAGGA,GGAAGG,GUAACA,UAACAA,UAAGAC,UCAAAA
PABPC5 2 596 0.007142857 0.0030078597 1.247764 AGAAAG,GAAAAU AGAAAA,AGAAAG,AGAAAU,GAAAAU,GAAAGU,GAAAUU
RC3H1 2 631 0.007142857 0.0031841999 1.165570 UUCUGU CCCUUC,CCUUCU,CUUCUG,UCCCUU,UCUGUG,UUCUGU
NELFE 4 1059 0.011904762 0.0053405885 1.156468 CUCUCU,GCUAAC,UCUCUC CUCUCU,CUCUGG,CUGGCU,CUGGUU,GCUAAC,GGCUAA,GGUCUC,GGUUAG,GUCUCU,UCUCUC,UCUCUG,UCUGGC,UCUGGU,UGGCUA,UGGUUA
ZCRB1 2 666 0.007142857 0.0033605401 1.087808 AUUUAA,GUUUAA AAUUAA,ACUUAA,AUUUAA,GAAUUA,GACUUA,GAUUAA,GAUUUA,GCUUAA,GGAUUA,GGCUUA,GGUUUA,GUUUAA
CELF5 2 669 0.007142857 0.0033756550 1.081334 GUGUUG,UGUGUU GUGUGG,GUGUGU,GUGUUG,GUGUUU,UGUGUG,UGUGUU
IGF2BP3 5 1348 0.014285714 0.0067966546 1.071676 AAACAC,AACACA,AACUCA,ACACAC,CAAACA AAAAAC,AAAACA,AAAAUC,AAACAC,AAACUC,AAAUAC,AAAUCA,AAAUUC,AACACA,AACUCA,AAUACA,AAUUCA,ACAAAC,ACAAUC,ACACAC,ACACUC,ACAUAC,ACAUUC,CAAACA,CAAUCA,CACACA,CACUCA,CAUACA,CAUUCA
AGO2 2 677 0.007142857 0.0034159613 1.064210 AAGUGC,AGUGCU AAAAAA,AAAGUG,AAGUGC,AGUGCU,GUGCUU,UAAAGU

Help

  • Note:
    • foreground: number of motifs found in the foreground target sequences (e.g. predicted circRNAs).
    • background: number of motifs found in the background target sequences (e.g. randomly generated circRNAs).
    • foregroundNorm: number of motifs found in the foreground target sequences (+1) divided by the number (or length) of sequences analyzed.
    • backgroundNorm: number of motifs found in background target sequences (+1) divided by the number (or length) of sequences analyzed.
    • log2FC: log2 fold change calculated in this way (foregroundNorm)/(backgroundNorm).
    • motifF: motifs of the corresponding RBP found in the foreground sequences.
    • motifB: motifs of the corresponding RBP found in the background sequences.
